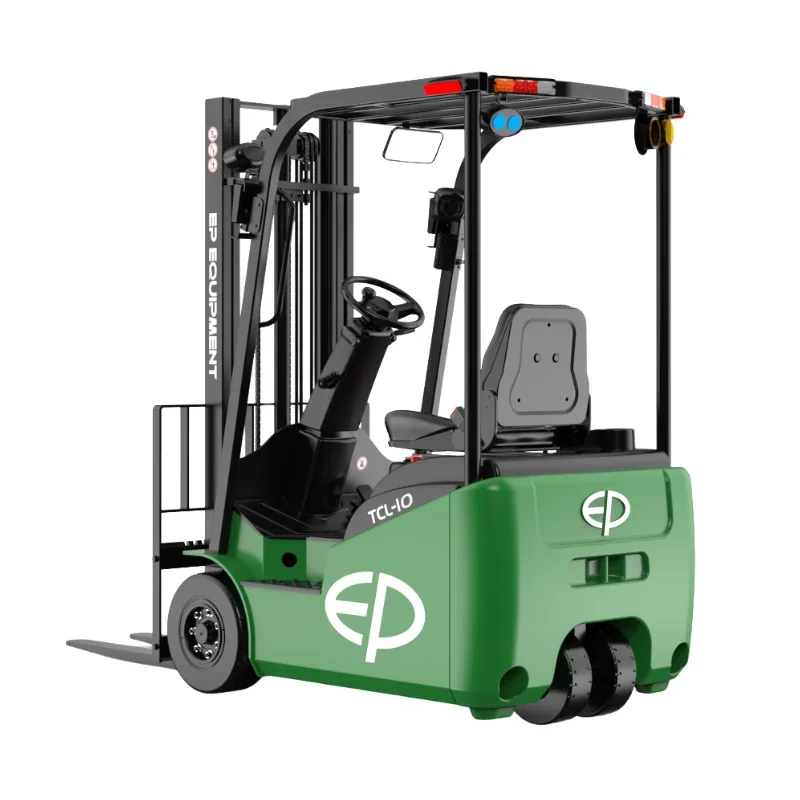

3-wheel dual-drive supercompact counterbalance forklift
TCL101
- Load capacity
- 1,000 kg
- Lift heightUp to 4,500 mm with optional mast
- 3,000 mm
- Battery
- 80 V Li-ion
Overview
A 3-wheel dual-drive supercompact counterbalance forklift with a rated capacity of 1,000 kg, a lift height of 3,000 mm (up to 4,500 mm with optional mast) and an 80 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,000 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 4,500 mm with optional mast
- Travel speed, laden/unladen
- 11/13 km/h
- Battery
- 80 V Li-ion
- Turning radius
- 1,422 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 310 mm
- Tilt of mast/fork carriage forward/backward
- 6/6 °
- Height, mast lowered
- 1,990 mm
- Free lift
- 120 mm
- Height, mast extended
- 3,919 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 960 mm
- Lift speed, laden/unladen
- 0.28/0.35 m/s
- Lowering speed, laden/unladen
- 0.32/0.36 m/s
Performance
- Max. gradeability, laden/unladen
- 13/15 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 2.0 × 2 kW
- Lift motor rating at S3 15%
- 7 kW
- Battery voltage/nominal capacity
- 80/50V/Ah
- Battery type
- Li-ion
- Battery weight
- 61 kg
- Type of drive unit
- PMSM
- Charger output current
- 35 A
Dimensions and weight
- Wheelbase
- 1,200 mm
- Service weight
- 1,985 kg
- Axle loading, laden front/rear
- 2,546/439 kg
- Axle loading, unladen front/rear
- 871/1,114 kg
- Tread width, front
- 838 mm
- Tread width, rear
- 208 mm
- Overall height
- 3,919 mm
- Height of overhead guard (cabin)
- 1,968 mm
- Seat height relating to SIP/stand height
- 925 mm
- Coupling height
- 483 mm
- Overall length
- 2,434 mm
- Length to face of forks
- 1,684 mm
- Overall width
- 1,020 mm
- Fork dimensions
- 35 × 100 × 920 mm
- Ground clearance, laden, below mast
- 93 mm
- Ground clearance, centre of wheelbase
- 89 mm
- Aisle width for pallets 1000×1200 crossways
- 2,804 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,026 mm
Wheels and tyres
- Tyres
- Solid rubber
- Tyre size, front
- 16 × 6-8mm
- Tyre size, rear
- 3.5-5mm
- Wheels, number front/rear (x=drive wheels)
- 2X/2
General
- Drive
- Electric
- Operator type
- Seated
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- 68 dB(A)
