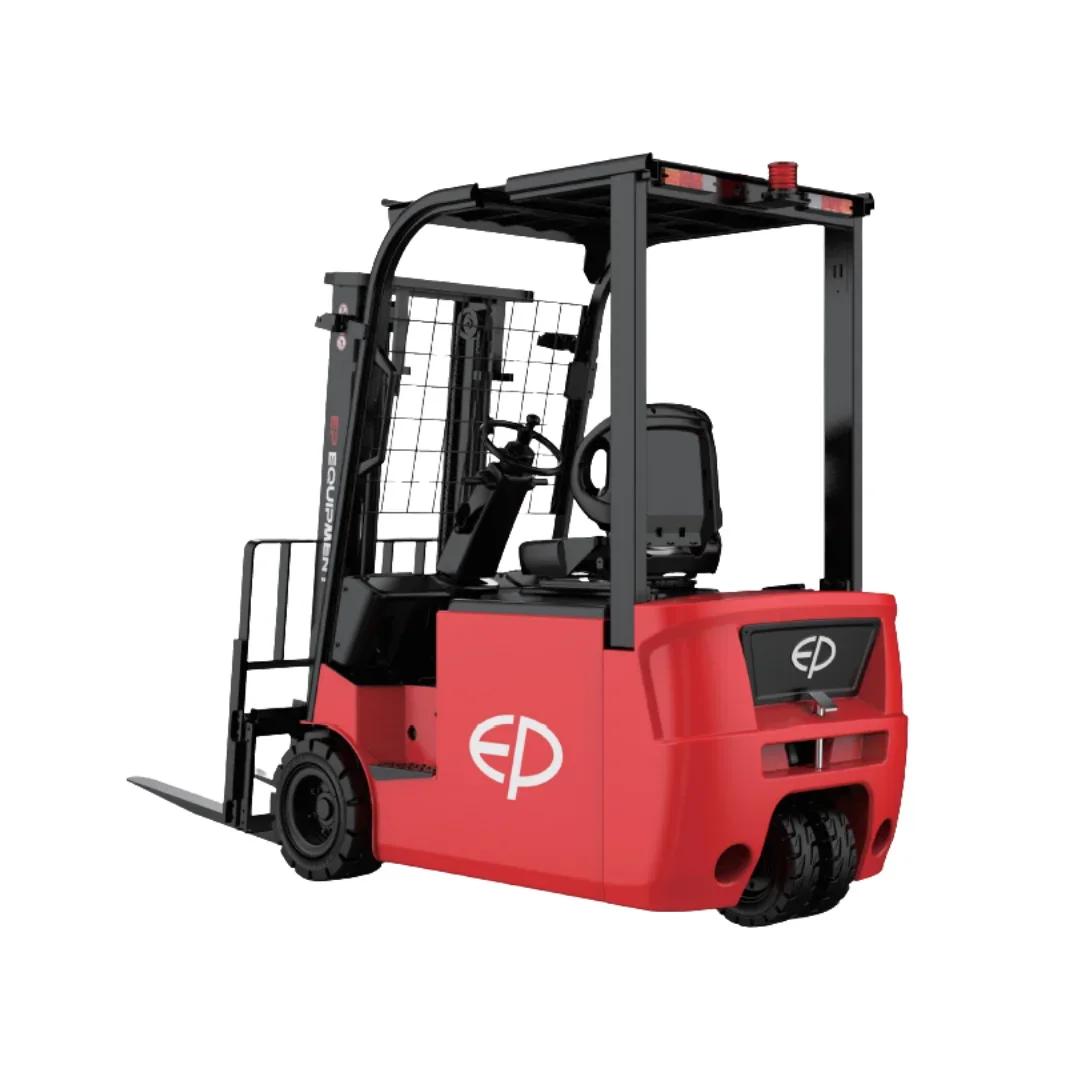

Electric cold storage forklift
CPD15TV8
- Load capacity
- 1,500 kg
- Lift heightUp to 6,000 mm with optional mast
- 3,000 mm
- Battery
- 80 V Li-ion
Overview
An electric cold storage forklift with a rated capacity of 1,500 kg, a lift height of 3,000 mm (up to 6,000 mm with optional mast) and an 80 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 6,000 mm with optional mast
- Travel speed, laden/unladen
- 13/14 km/h
- Battery
- 80 V Li-ion
- Turning radius
- 1,570 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 402 mm
- Tilt of mast/fork carriage forward/backward
- 6/6 °
- Height, mast lowered
- 2,070 mm
- Free lift
- 100 mm
- Height, mast extended
- 4,058 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 1,040 mm
- Lift speed, laden/unladen
- 0.26/0.43 m/s
- Lowering speed, laden/unladen
- 0.44/0.435 m/s
Performance
- Max. drawbar pull, laden/unladen
- 4,215/335N
- Max. gradeability, laden/unladen
- 10.5/14.5 %
- Service brake
- Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 5 × 2 kW
- Lift motor rating at S3 15%
- 11 kW
- Battery voltage/nominal capacity
- 80V/240AhV/Ah
- Battery voltage
- 80 V
- Battery nominal capacity K5
- 240 / 150 Ah
- Battery type
- Lead Acid/Li-ion
- Battery weight
- 680 kg
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,357 mm
- Service weight
- 3,089 kg
- Axle loading, laden front/rear
- 4,077/511 kg
- Axle loading, unladen front/rear
- 1,583/1,505 kg
- Tread width, front
- 911 mm
- Tread width, rear
- 169 mm
- Height of overhead guard (cabin)
- 2,160 mm
- Seat height relating to SIP/stand height
- 1,090 mm
- Coupling height
- 460 mm
- Overall length
- 2,910 mm
- Length to face of forks
- 1,990 mm
- Overall width
- 1,090 mm
- Fork dimensions
- 40 × 100 × 920 mm
- Ground clearance, laden, below mast
- 80 mm
- Ground clearance, centre of wheelbase
- 85 mm
- Aisle width for pallets 1000×1200 crossways
- 3,300 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,450 mm
Wheels and tyres
- Tyres
- Solid rubber
- Tyre size, front
- 18 × 7-8mm
- Tyre size, rear
- 15 × 4.5-8mm
- Wheels, number front/rear (x=drive wheels)
- 2X/2
General
- Drive
- Electric
- Operator type
- Seated
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- 74 dB(A)
