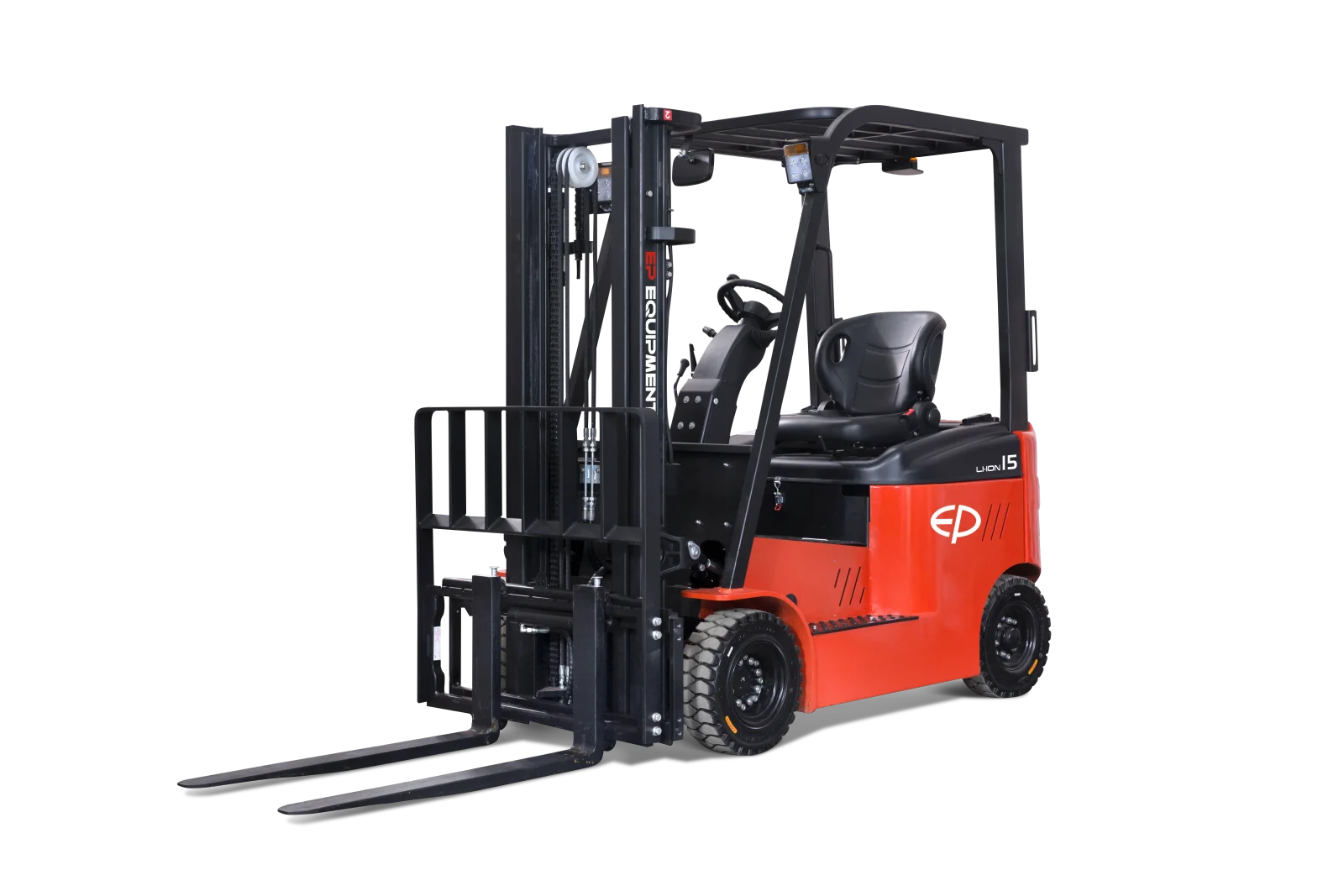

Electric counterbalance forklift truck
CPD15L1
- Load capacity
- 1,500 kg
- Lift heightUp to 5,000 mm with optional mast
- 3,000 mm
- Battery
- 48 V Li-ion
Overview
An electric counterbalance forklift truck with a rated capacity of 1,500 kg, a lift height of 3,000 mm (up to 5,000 mm with optional mast) and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 5,000 mm with optional mast
- Travel speed, laden/unladen
- 10.5/14 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 2,080 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 405 mm
- Tilt of mast/fork carriage forward/backward
- 6/11 °
- Height, mast lowered
- 1,990 mm
- Free lift
- 105 mm
- Height, mast extended
- 4,028 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 1,040 mm
- Lift speed, laden/unladen
- 0.3/0.42 m/s
- Lowering speed, laden/unladen
- 0.42/0.45 m/s
Performance
- Max. gradeability, laden/unladen
- 10.5/14 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 6 kW
- Lift motor rating at S3 15%
- 7.5 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 280 Ah
- Battery type
- Li-ion
- Battery weight
- 190 kg
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,470 mm
- Service weight
- 2,640 kg
- Axle loading, laden front/rear
- 3,615/525 kg
- Axle loading, unladen front/rear
- 1,190/1,450 kg
- Tread width, front
- 910 mm
- Tread width, rear
- 920 mm
- Height of overhead guard (cabin)
- 2,080 mm
- Seat height relating to SIP/stand height
- 1,050 mm
- Coupling height
- 360 mm
- Overall length
- 3,270 mm
- Length to face of forks
- 2,200 mm
- Overall width
- 1,080 mm
- Fork dimensions
- 40 × 100 × 1,070 mm
- Ground clearance, laden, below mast
- 110 mm
- Ground clearance, centre of wheelbase
- 105 mm
- Aisle width for pallets 1000×1200 crossways
- 3,685 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,885 mm
Wheels and tyres
- Tyres
- Solid rubber
- Tyre size, front
- 18 × 7-8mm
- Tyre size, rear
- 5.00-8mm
- Wheels, number front/rear (x=drive wheels)
- 2x/2
General
- Drive
- Electric
- Operator type
- Seated
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- 70 dB(A)
