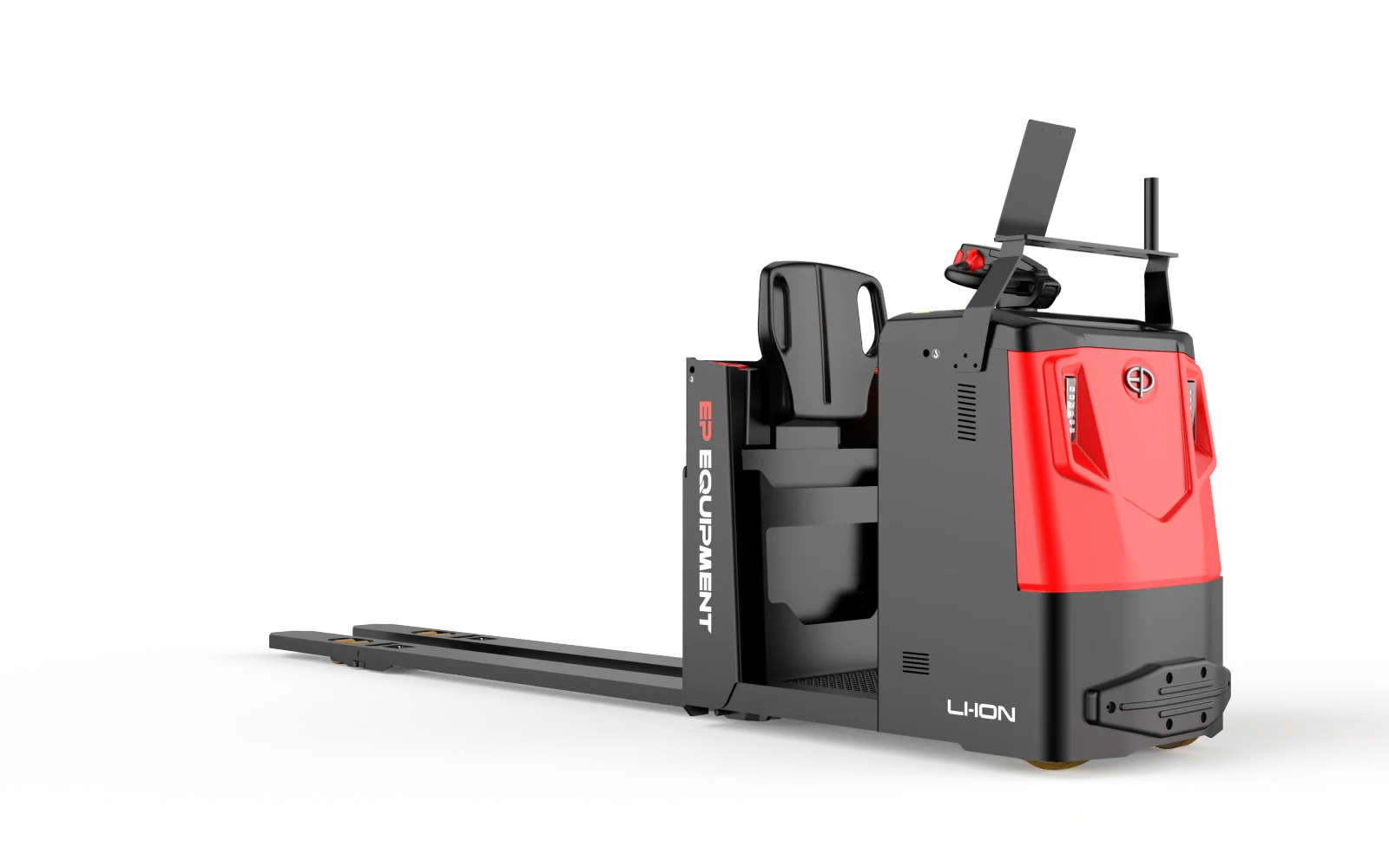

Low level order picker
TPL251
- Load capacity
- 2,500 kg
- Lift height
- 120 mm
- Battery
- 24 V
Overview
A low level order picker with a rated capacity of 2,500 kg, a lift height of 120 mm and a 24 V battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,500 kg
- Lift height
- 120 mm
- Travel speed, laden/unladen
- 9.5/14.5 km/h
- Battery
- 24 V
- Turning radius
- 2,172 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 980 mm
- Lift speed, laden/unladen
- 0.032/0.044 m/s
- Lowering speed, laden/unladen
- 0.045/0.037 m/s
Performance
- Height drawbar in driving position min./max.
- 1,273 mm
- Max. gradeability, laden/unladen
- 5/16 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 3.3 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 280 Ah
- Battery weight
- 76 kg
- Energy consumption according to DIN EN 16796
- 0.494 ¹⁾kWh/h
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 2,117 mm
- Service weight
- 821 kg
- Axle loading, laden front/rear
- 1,050/2,271 kg
- Axle loading, unladen front/rear
- 600/221 kg
- Tread width, front
- 465 mm
- Tread width, rear
- 370/515 mm
- Overall height
- 1,273 mm
- Height, lowered
- 85 mm
- Length of loading surface
- 1,375
- Overall length
- 2,526 mm
- Length to face of forks
- 1,375 mm
- Overall width
- 804 mm
- Fork dimensions
- 55/190/1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 3,006 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,941 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф260 × 105mm
- Tyre size, rear
- Ф85 × 70mm
- Additional wheels (castor wheels)
- Ф180 × 65mm
- Wheels, number front/rear (x=drive wheels)
- 1x+1/4
General
- Drive
- Electric
- Operator type
- Stand-on
- Distance between fork-arms
- 560/685 mm
- Turnover output according to VDI 2198
- 117.5t/h
- Turnover efficiency according to VDI 2198
- 112.12t/kWh
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
