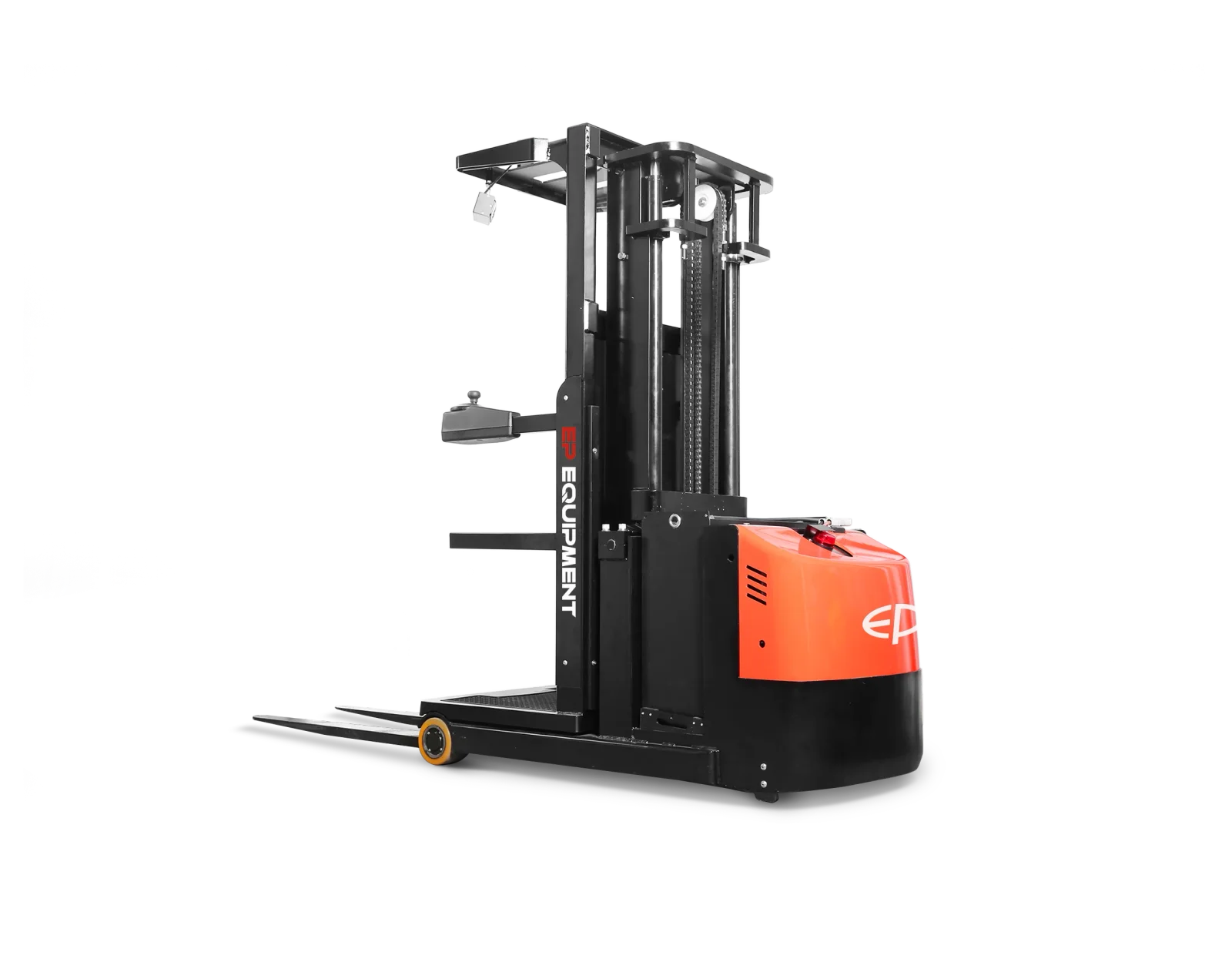

Medium level order picker
JX2-4
- Load capacity
- 1,000 kg
- Lift height
- 3,200 / 3,600 mm
- Battery
- 24 V lead-acid
Overview
A medium level order picker with a rated capacity of 1,000 kg, a lift height of 3,200 / 3,600 mm and a 24 V lead-acid battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,000 kg
- Lift height
- 3,200 / 3,600 mm
- Travel speed, laden/unladen
- 8/8 km/h
- Battery
- 24 V lead-acid
- Turning radius
- 1,600 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 115 mm
- Height, mast lowered
- 2,170 / 2,360 mm
- Height, mast extended
- 5,410 / 5,855 mm
- Fork carriage width
- 100 mm
- Lift speed, laden/unladen
- 0.13/0.16 m/s
- Lowering speed, laden/unladen
- 0.41/0.25 m/s
Performance
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 3.3 kW
- Lift motor rating at S3 15%
- 3 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 360 Ah
- Battery type
- Lead Acid
- Battery weight
- 330 kg
- Type of drive unit
- AC
- Charger output current
- 50 A
Dimensions and weight
- Wheelbase
- 1,365 mm
- Service weight
- 2,020 / 2,061 kg
- Axle loading, laden front/rear
- 2,367/789 / 2,378/819 kg
- Axle loading, unladen front/rear
- 814/1,206 / 802/1,259 kg
- Tread width, front
- 740 mm
- Tread width, rear
- 570 mm
- Height of overhead guard (cabin)
- 2,270 mm
- Seat height relating to SIP/stand height
- 220 mm
- Height of wheel arms
- 740mm
- Stand height, elevated
- 3,360 / 3815mm
- Height, lowered
- 63 mm
- Overall length
- 2,750 mm
- Length to face of forks
- 1,680 mm
- Overall width
- 860 mm
- Fork dimensions
- 40/100/1,070 mm
- Ground clearance, laden, below mast
- 2,020 mm
- Ground clearance, centre of wheelbase
- 50 mm
- Aisle width for pallets 1000×1200 crossways
- 3,100 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,150 mm
Wheels and tyres
- Tyres
- Polyurethane/Solidrubber
- Tyre size, front
- φ165 × 120mm
- Tyre size, rear
- φ260 × 105mm
- Additional wheels (castor wheels)
- φ74 × 48mm
- Wheels, number front/rear (x=drive wheels)
- 1x，2/2
General
- Drive
- Electric
- Operator type
- Order-picker
- Distance between fork-arms
- 540 mm
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 70 dB(A)
