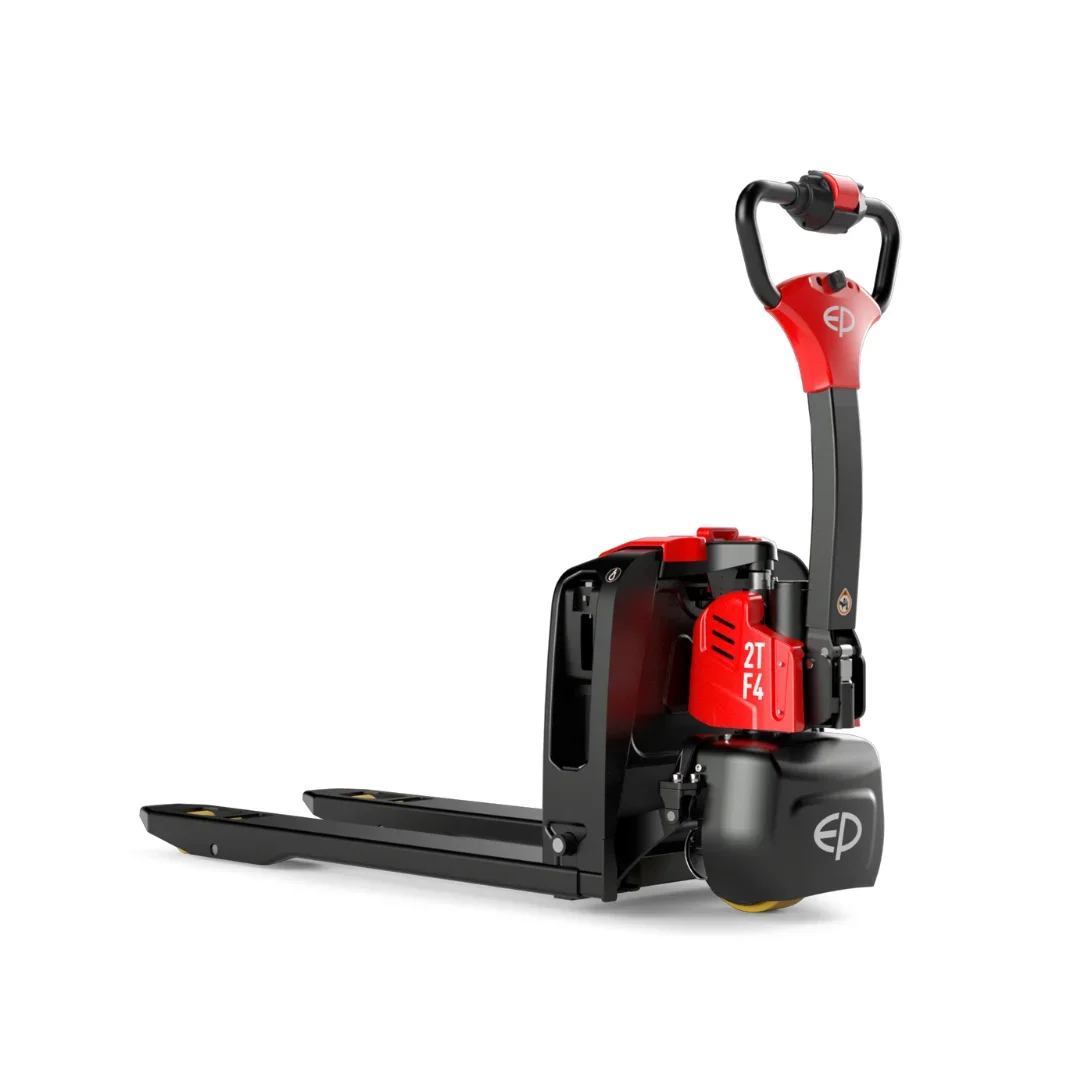

Electric pallet truck
F4-201
- Load capacity
- 2,000 kg
- Lift height
- 105 mm
- Battery
- 48 V Li-ion
Overview
An electric pallet truck with a rated capacity of 2,000 kg, a lift height of 105 mm and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height
- 105 mm
- Travel speed, laden/unladen
- 4.5 / 5 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,360 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 950 mm
- Fork carriage width
- 560 (685) mm
- Lift speed, laden/unladen
- 0.023/0.026 m/s
- Lowering speed, laden/unladen
- 0.055/0.021 m/s
Performance
- Height drawbar in driving position min./max.
- 750/1,190 mm
- Max. gradeability, laden/unladen
- 8 / 16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.9 kW
- Lift motor rating at S3 15%
- 0.7 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 20 Ah
- Battery type
- Li-ion
- Battery weight
- 10 kg
- Type of drive unit
- BLDC
- Charger output current
- 5 A
Dimensions and weight
- Wheelbase
- 1,180 mm
- Service weight
- 140 kg
- Axle loading, laden front/rear
- 620/1,520 kg
- Axle loading, unladen front/rear
- 100/40 kg
- Tread width, rear
- 410 (535) mm
- Height, lowered
- 82 mm
- Overall length
- 1,550 mm
- Length to face of forks
- 400 mm
- Overall width
- 590 / 695 mm
- Fork dimensions
- 50 × 150 × 1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 2,160 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,025 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 210 × 70mm
- Tyre size, rear
- 80 × 60mm
- Additional wheels (castor wheels)
- 74 × 30mm
- Wheels, number front/rear (x=drive wheels)
- 1x −/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
