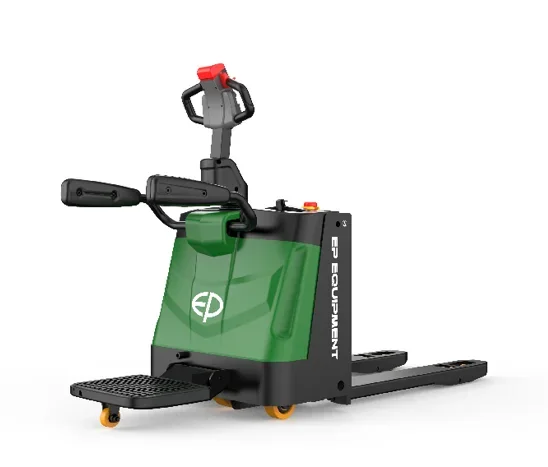

Ride on pallet truck
ETR151
- Load capacity
- 1,500 kg
- Lift height
- 115 mm
- Battery
- 48 V Li-ion
Overview
A ride on pallet truck with a rated capacity of 1,500 kg, a lift height of 115 mm and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height
- 115 mm
- Travel speed, laden/unladen
- 5.5/6 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,503 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 961 mm
- Height, mast lowered
- 80 mm
- Free lift
- 55 mm
- Height, mast extended
- Ф230 × 75 mm
- Initial lift
- Ф80 × 60mm
- Fork carriage width
- 850 mm
- Lift speed, laden/unladen
- 0.030/0.036 m/s
- Lowering speed, laden/unladen
- 0.044/0.049 m/s
Performance
- Height drawbar in driving position min./max.
- 1,115/1,350 mm
- Drawbar pull, laden/unladen
- 870/1,070
- Max. gradeability, laden/unladen
- 5/10 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.9 kW
- Lift motor rating at S3 15%
- 0.8 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 65 / 40 Ah
- Battery type
- Lead Acid/Li-ion
- Energy consumption according to DIN EN 16796
- 5.5/6kWh/h
- Type of drive unit
- DC
- Charger output current
- 0.9 A
Dimensions and weight
- Wheelbase
- 1,244.5 mm
- Service weight
- 456 kg
- Axle loading, laden front/rear
- 870/1,070 kg
- Axle loading, unladen front/rear
- 370/86 kg
- Tread width, front
- 644 mm
- Tread width, rear
- 390/515 mm
- Height of overhead guard (cabin)
- Electromagnetic mm
- Seat height relating to SIP/stand height
- 1,115/1,350 mm
- Height of wheel arms
- Polyurethanemm
- Height, lowered
- 80 mm
- Length of loading surface
- 542
- Width of loading surface
- 850
- Overall length
- 1,685 mm
- Length to face of forks
- 542 mm
- Overall width
- 850 mm
- Fork dimensions
- 55 × 170 × 1,150 mm
- Ground clearance, laden, below mast
- 5/10 mm
- Ground clearance, centre of wheelbase
- 25 mm
- Aisle width for pallets 1000×1200 crossways
- 2,304 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,168 mm
- Internal turning radius
- 1,503
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф230 × 75mm
- Tyre size, rear
- Ф80 × 60mm
- Additional wheels (castor wheels)
- Ф130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x+2/4
- Distance between wheel arms/loading surfaces
- 1,244.5
General
- Drive
- Electric
- Operator type
- Standing on/Pedestrian
- Distance between fork-arms
- 560/685 mm
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
