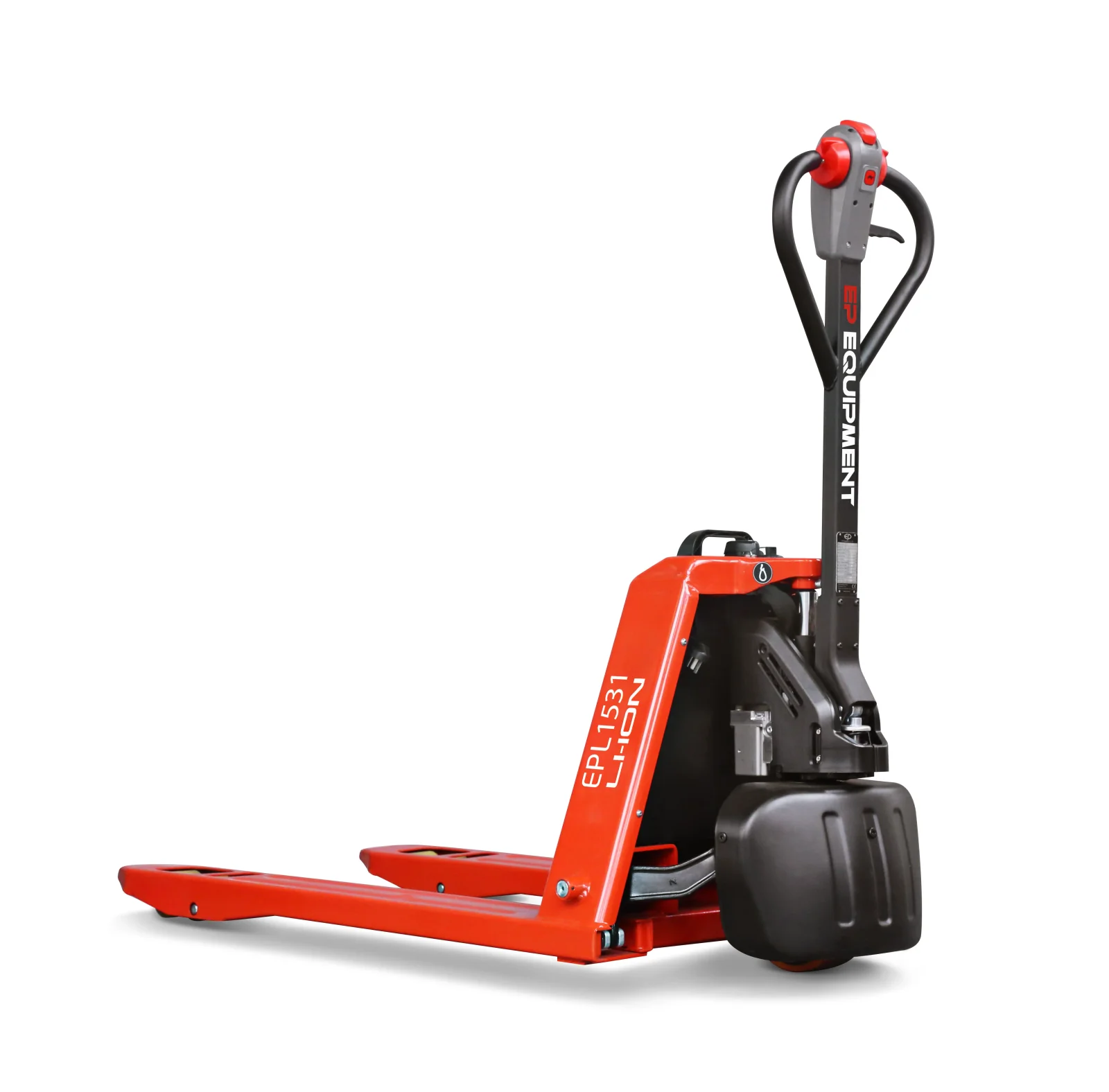

Electric pallet truck
EPL1531
- Load capacity
- 1,500 kg
- Lift height
- 115 mm
- Battery
- 24 V Li-ion
Overview
An electric pallet truck with a rated capacity of 1,500 kg, a lift height of 115 mm and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height
- 115 mm
- Travel speed, laden/unladen
- 4.0/4.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,330 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 950 (880) mm
- Lift speed, laden/unladen
- 0.017/0.020 m/s
- Lowering speed, laden/unladen
- 0.052/0.016 m/s
Performance
- Height drawbar in driving position min./max.
- 750/1,190 mm
- Max. gradeability, laden/unladen
- 6/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.75 kW
- Lift motor rating at S3 15%
- 0.7 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 20 Ah
- Battery type
- Li-ion
- Battery weight
- 7 kg
- Type of drive unit
- DC
- Charger output current
- 10 A
Dimensions and weight
- Wheelbase
- 1,190 (1,120) mm
- Service weight
- 120 kg
- Axle loading, laden front/rear
- 480/1,140 kg
- Axle loading, unladen front/rear
- 90/30 kg
- Tread width, rear
- 410 (535) mm
- Height, lowered
- 82 mm
- Overall length
- 1,540 mm
- Length to face of forks
- 400 mm
- Overall width
- 560 (685) mm
- Fork dimensions
- 55 × 150 × 1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 2,145 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,050 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 210 × 70mm
- Tyre size, rear
- Ф80 × 60(Ф74 × 88)mm
- Wheels, number front/rear (x=drive wheels)
- 1x/4(1x/2)
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 560 (685) mm
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- <74 dB(A)
Bought in Aruba. Supported in Aruba.
With ProLift you deal with one local partner, from the first question to service years later.
-
Ready to work
New machines are delivered fully assembled, inspected and ready to work.
-
Maintenance and repairs
Preventive maintenance and repairs to keep your machine running.
-
Parts
Support and parts arranged directly for Aruba, to keep downtime short.
-
One point of contact
One dedicated partner from the first quote to final delivery and beyond.
Interested in the EPL1531?
Talk to ProLift. We'll help you choose the right configuration for your operation.
