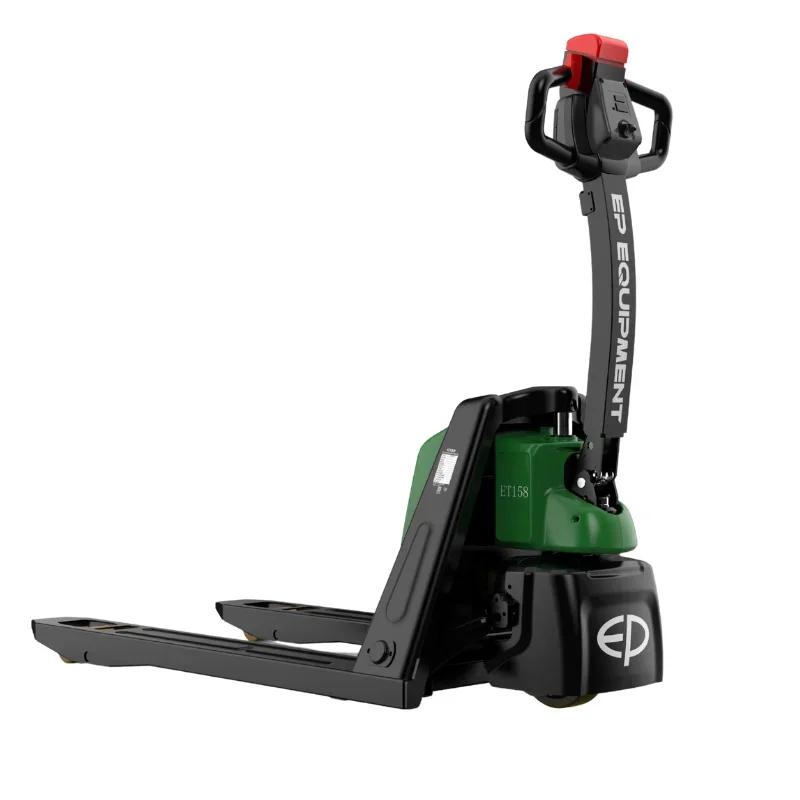

Electric pallet truck
ET158
- Load capacity
- 1,500 kg
- Lift height
- 110 mm
- Battery
- 48 V Li-ion
Overview
An electric pallet truck with a rated capacity of 1,500 kg, a lift height of 110 mm and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height
- 110 mm
- Travel speed, laden/unladen
- 4.5/5.0 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,403 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 947 mm
- Lift speed, laden/unladen
- 0.022/0.025 m/s
- Lowering speed, laden/unladen
- 0.065/0.060 m/s
Performance
- Height drawbar in driving position min./max.
- 650/1,200 mm
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.75 kW
- Lift motor rating at S3 15%
- 0.8 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 10 Ah
- Battery type
- Li-ion
- Battery weight
- 6.5 kg
- Type of drive unit
- DC
Dimensions and weight
- Wheelbase
- 1,198 mm
- Service weight
- 118 kg
- Axle loading, laden front/rear
- 530/1,088 kg
- Axle loading, unladen front/rear
- 96/22 kg
- Tread width, front
- 410 mm
- Tread width, rear
- 410（535） mm
- Height, lowered
- 80 mm
- Overall length
- 1,566 mm
- Length to face of forks
- 416 mm
- Overall width
- 560（685） mm
- Fork dimensions
- 55/150/1,150 mm
- Aisle width for pallets 1000×1200 crossways
- 2,163 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,076 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф190 × 55mm
- Tyre size, rear
- Ф80 × 61mm
- Additional wheels (castor wheels)
- Ф74 × 30mm
- Wheels, number front/rear (x=drive wheels)
- 1x-/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- <74 dB(A)
