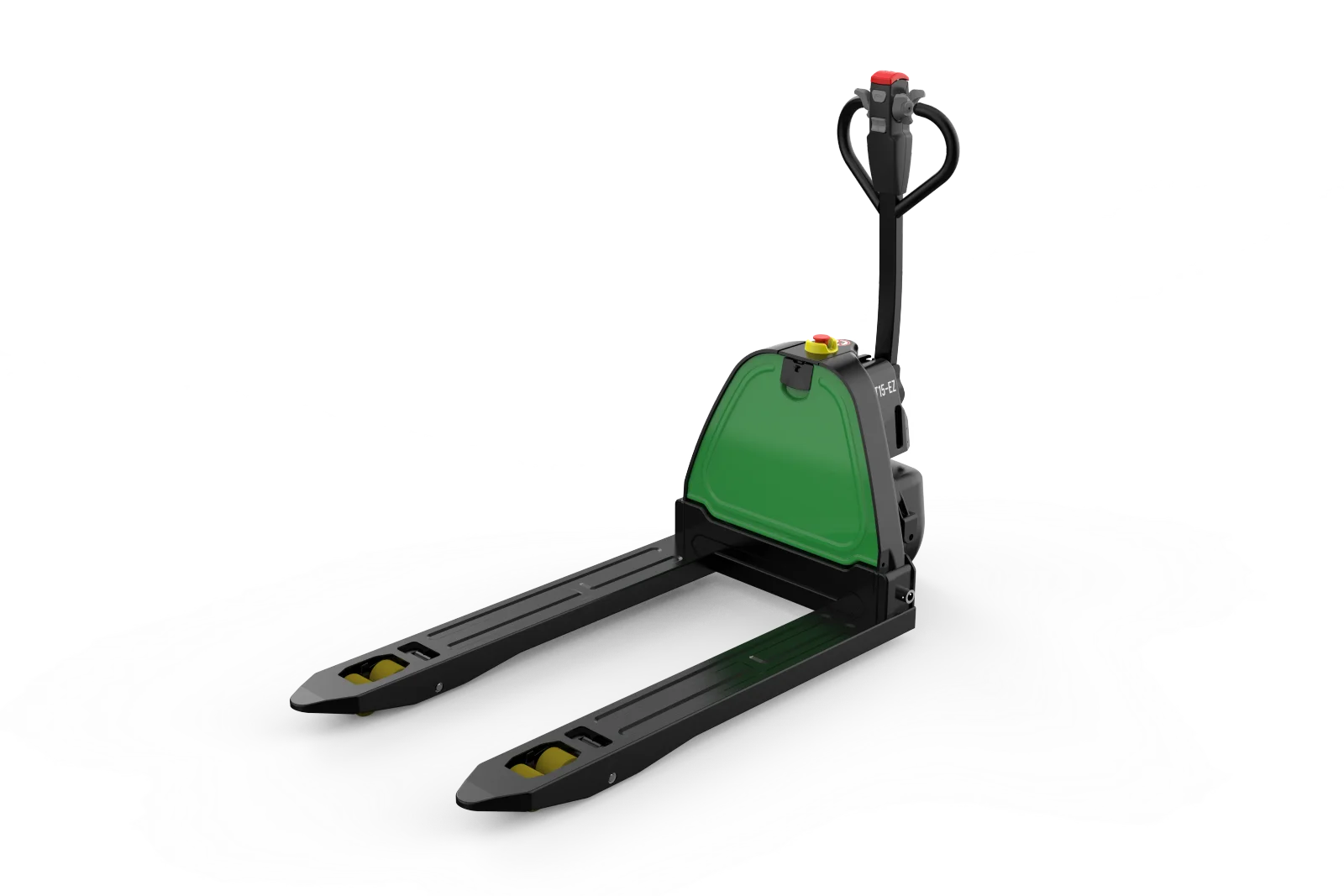

Electric pallet truck
EPT20-EZ
- Load capacity
- 2,000 kg
- Lift height
- 105 mm
- Battery
- 48 V Li-ion
Overview
An electric pallet truck with a rated capacity of 2,000 kg, a lift height of 105 mm and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height
- 105 mm
- Travel speed, laden/unladen
- 4/4.5 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,390 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 950 mm
- Lift speed, laden/unladen
- 0.017/0.023 m/s
- Lowering speed, laden/unladen
- 0.053/0.035 m/s
Performance
- Height drawbar in driving position min./max.
- 750/1,190 mm
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.7 kW
- Lift motor rating at S3 15%
- 0.7 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 10 Ah
- Battery type
- Li-ion
- Battery weight
- 5 kg
- Type of drive unit
- DC
- Charger output current
- Charger output current A
Dimensions and weight
- Wheelbase
- 1,210 mm
- Service weight
- 130 kg
- Axle loading, laden front/rear
- 678/1,452 kg
- Axle loading, unladen front/rear
- 98/32 kg
- Tread width, front
- 535 mm
- Tread width, rear
- 535/410 mm
- Height, lowered
- 82 mm
- Width of loading surface
- 695/590
- Overall length
- 1,580 mm
- Length to face of forks
- 430 mm
- Overall width
- 695/590 mm
- Fork dimensions
- 50/150/1,150 mm
- Ground clearance, centre of wheelbase
- 25 mm
- Aisle width for pallets 1000×1200 crossways
- 2,190 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,055 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф150 × 65mm
- Tyre size, rear
- Ф80 × 60(Ф74 × 88)mm
- Additional wheels (castor wheels)
- Ф74 × 30(option)mm
- Wheels, number front/rear (x=drive wheels)
- 1 × 2/4（1 × 2/2）
General
- Drive
- Electric
- Operator type
- Pedestrian
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
