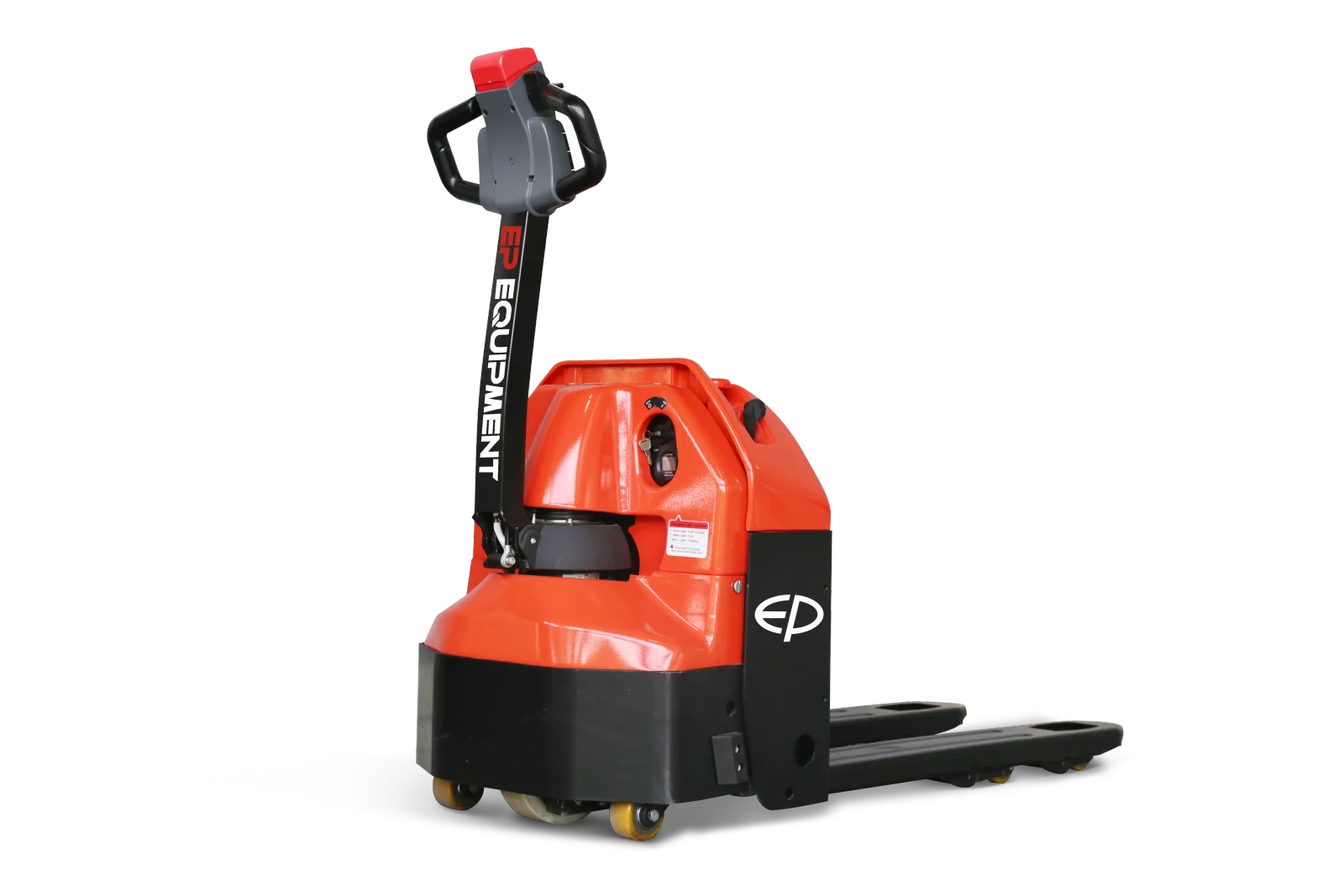

Electric pallet truck
EPT20-18EA
- Load capacity
- 1,800 kg
- Travel speed
- 5/5.5 km/h
- Battery
- 24 V Li-ion
Overview
An electric pallet truck with a rated capacity of 1,800 kg and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,800 kg
- Travel speed, laden/unladen
- 5/5.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,465 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 945 mm
- Lift speed, laden/unladen
- 0.051/0.060 m/s
- Lowering speed, laden/unladen
- 0.032/0.039 m/s
Performance
- Max. gradeability, laden/unladen
- 6/16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.1 kW
- Lift motor rating at S3 15%
- 0.8 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 2 × 12/85 Ah
- Battery type
- Li-ion
- Battery weight
- 25 × 2 kg
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,270 mm
- Service weight
- 285 kg
- Axle loading, laden front/rear
- 770/1,315 kg
- Axle loading, unladen front/rear
- 230/55 kg
- Tread width, rear
- 390/495/535 mm
- Fork dimensions
- 50 × 150 × 1,150 mm
- Ground clearance, centre of wheelbase
- 35 mm
- Aisle width for pallets 1000×1200 crossways
- 1,720 mm
- Aisle width for pallets 800 × 1200 lengthways
- 1,920 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 230 × 75mm
- Tyre size, rear
- 74 × 88/80 × 61mm
- Wheels, number front/rear (x=drive wheels)
- 1x+2/2(1x+2/4)
General
- Drive
- Electric
- Operator type
- Pedestrian
