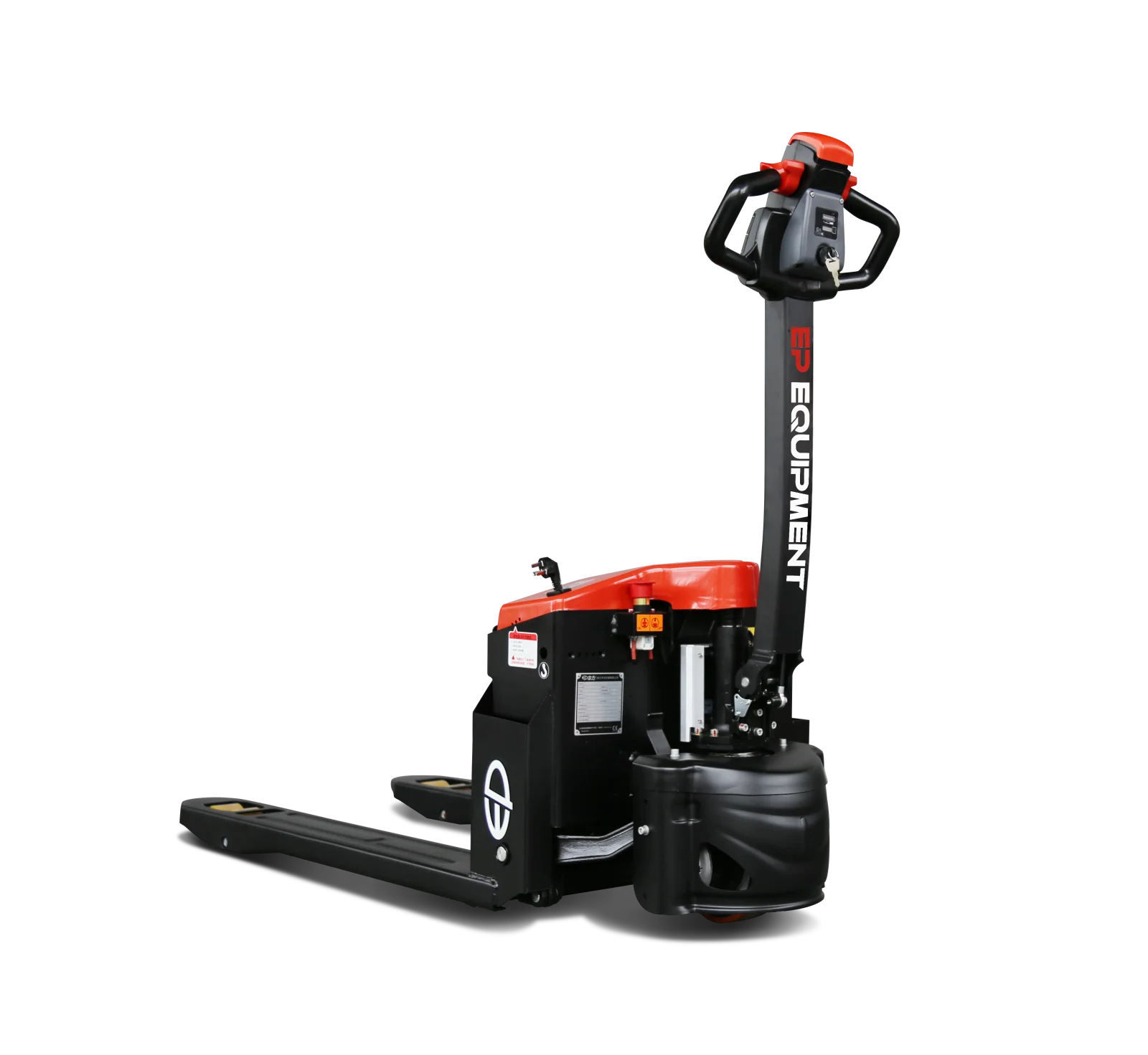

Electric pallet truck
EPT20-15ET2
- Load capacity
- 1,500 kg
- Lift height
- 115 mm
- Battery
- 24 V AGM
Overview
An electric pallet truck with a rated capacity of 1,500 kg, a lift height of 115 mm and a 24 V AGM battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height
- 115 mm
- Travel speed, laden/unladen
- 4.5/5 km/h
- Battery
- 24 V AGM
- Turning radius
- 1,475 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 946 mm
- Lift speed, laden/unladen
- 0.027/0.038 m/s
- Lowering speed, laden/unladen
- 0.059/0.039 m/s
Performance
- Max. gradeability, laden/unladen
- 5 / 16 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.75 kW
- Lift motor rating at S3 15%
- 0.8 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 72 Ah
- Battery type
- AGM
- Battery weight
- 34 kg
- Type of drive unit
- DC
Dimensions and weight
- Wheelbase
- 1,261 mm
- Service weight
- 173 kg
- Axle loading, laden front/rear
- 567/1,128 kg
- Axle loading, unladen front/rear
- 133/40 kg
- Tread width, rear
- 410 (535) mm
- Height, lowered
- 80 mm
- Overall length
- 1,638 mm
- Length to face of forks
- 488 mm
- Overall width
- 560 (685) mm
- Fork dimensions
- 50/150/1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 2,280 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,150 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 210 × 70mm
- Tyre size, rear
- 80 × 61mm
- Wheels, number front/rear (x=drive wheels)
- 1x —/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 560 (685) mm
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
