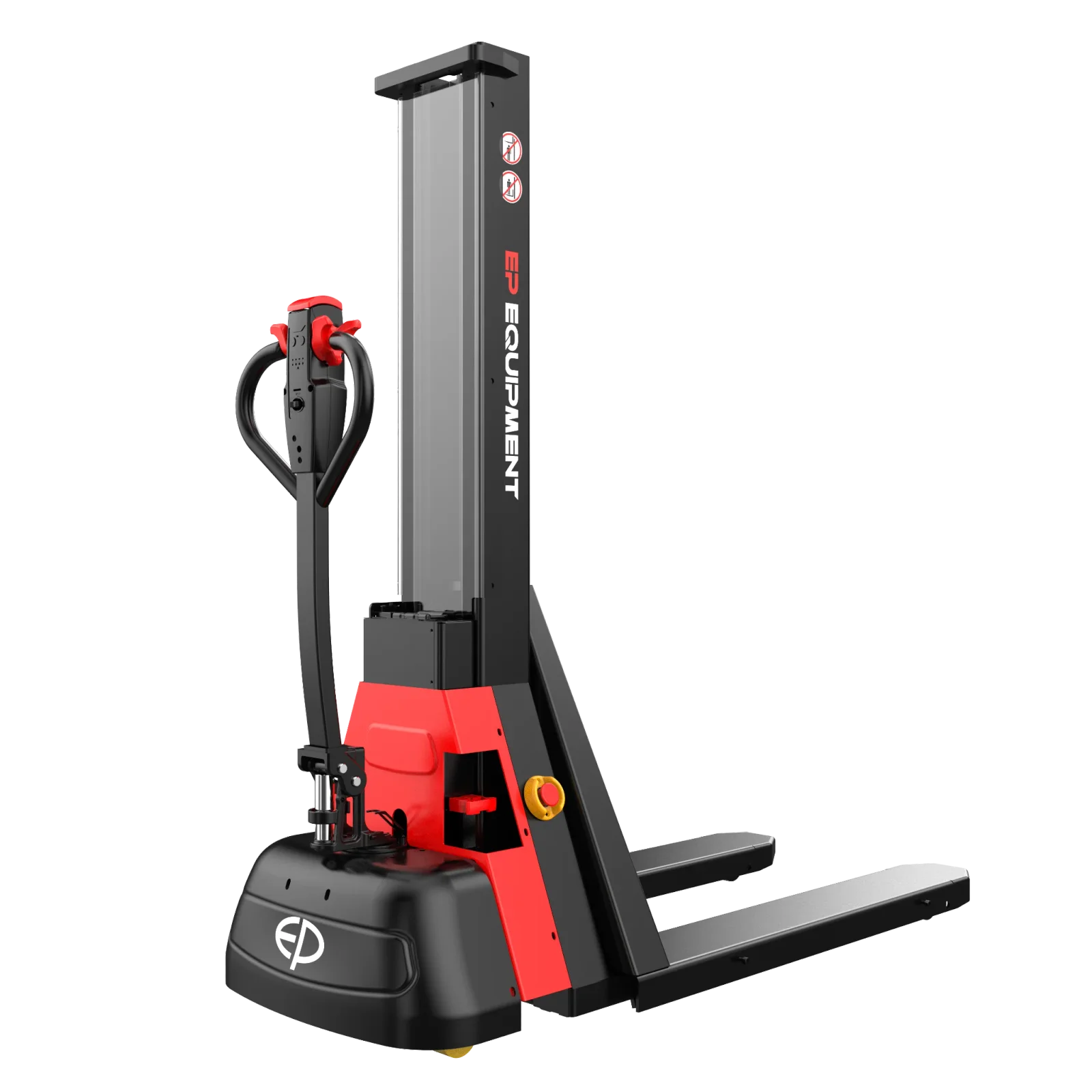

High lift electric pallet truck
EPT12-F3H
- Load capacity
- 1,200 kg
- Lift heightUp to 990 mm with optional mast
- 905 mm
- Battery
- 24 V Li-ion
Overview
A high lift electric pallet truck with a rated capacity of 1,200 kg, a lift height of 905 mm (up to 990 mm with optional mast) and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,200 kg
- Lift height (standard mast)
- 905 mm
- Max. lift height
- 990 mm with optional mast
- Travel speed, laden/unladen
- 3.7/4.0 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,400 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 874 mm
- Height, mast lowered
- 1,635 mm
- Free lift
- 990 mm
- Height, mast extended
- 1,635 mm
- Lift speed, laden/unladen
- Level1 0.031/0.047 Level2 0.049/0.094 m/s
- Lowering speed, laden/unladen
- Level1 0.067/0.035 Level2 0.156/0.109 m/s
Performance
- Height drawbar in driving position min./max.
- 760/1,140 mm
- Max. gradeability, laden/unladen
- 5/8 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.75 kW
- Lift motor rating at S3 15%
- 1.2 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 30 Ah
- Battery type
- Li-ion
- Battery weight
- 7 kg
- Type of drive unit
- DC
- Charger output current
- 10 A
Dimensions and weight
- Wheelbase
- 1,235 mm
- Service weight
- 329 kg
- Axle loading, laden front/rear
- 532/997 kg
- Axle loading, unladen front/rear
- 235/94 kg
- Tread width, rear
- 390/515 mm
- Overall height
- 1,635 mm
- Height, lowered
- 85 mm
- Overall length
- 1,625 mm
- Length to face of forks
- 525 mm
- Overall width
- 616/685 mm
- Fork dimensions
- 60 × 150 × 1,150 mm
- Ground clearance, centre of wheelbase
- 30 mm
- Aisle width for pallets 1000×1200 crossways
- 2,263 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,164 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 210 × 70mm
- Tyre size, rear
- 74 × 88mm
- Additional wheels (castor wheels)
- 74 × 30mm
- Wheels, number front/rear (x=drive wheels)
- 1x，2/2
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 560/685 mm
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
