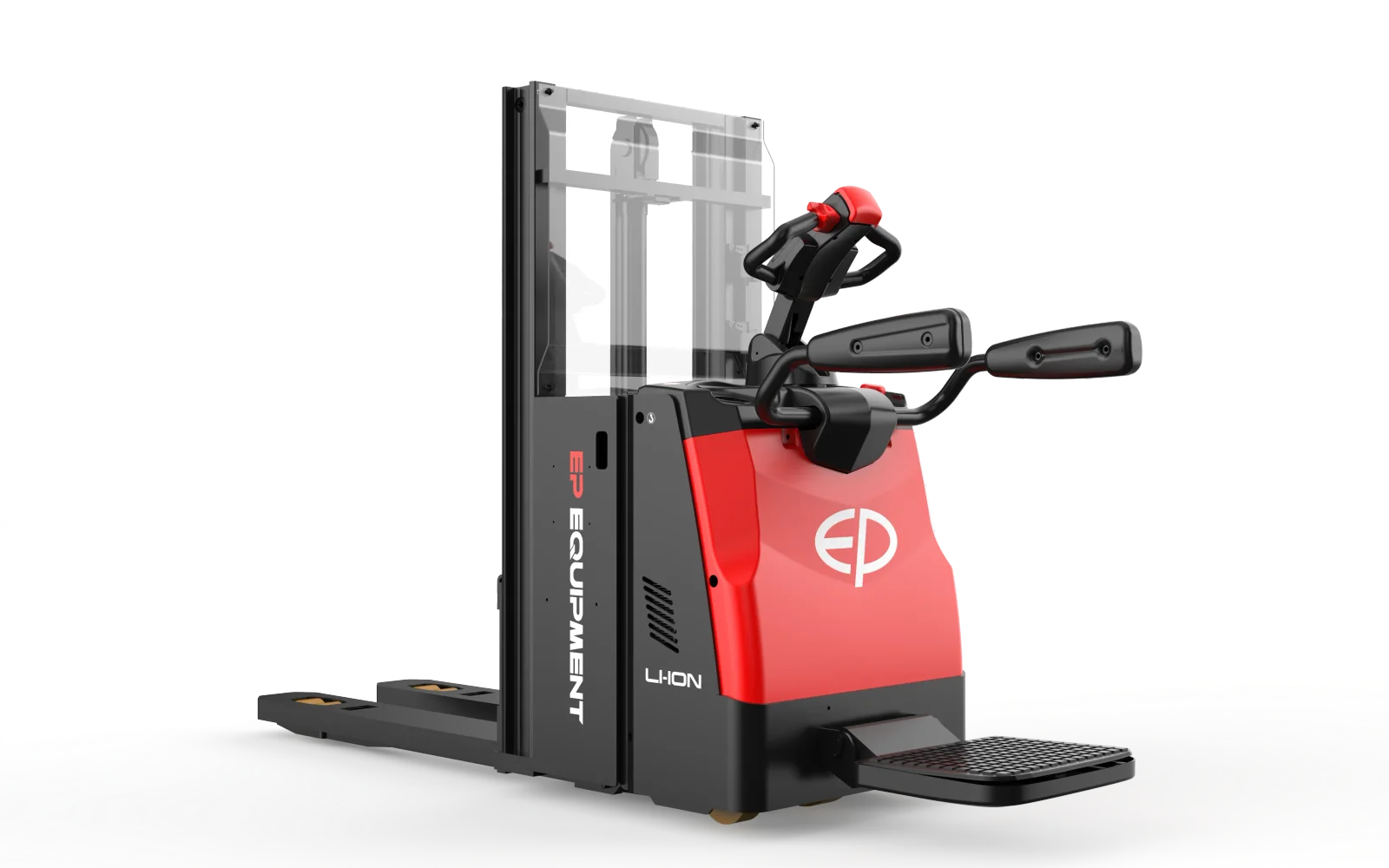

Heavy-duty double-deck stacker
RSi201
- Load capacity
- 2,000 kg
- Lift height
- 1,600 mm
- Battery
- 24 V
Overview
A heavy-duty double-deck stacker with a rated capacity of 2,000 kg, a lift height of 1,600 mm and a 24 V battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height
- 1,600 mm
- Travel speed, laden/unladen
- 8/8 km/h
- Battery
- 24 V
- Turning radius
- 1,820 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 926 mm
- Height, mast lowered
- 1,316 mm
- Height, mast extended
- 2,112 mm
- Initial lift
- 120mm
- Fork carriage width
- 55 × 185 mm
- Lift speed, laden/unladen
- 0.18/0.23 m/s
- Lowering speed, laden/unladen
- 0.36/0.18 m/s
Performance
- Height drawbar in driving position min./max.
- 1,190/1,290 mm
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 2.5 kW
- Lift motor rating at S3 15%
- 3 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 205 Ah
- Battery weight
- 70 kg
- Energy consumption according to DIN EN 16796
- 0,.262 ¹⁾kWh/h
- Type of drive unit
- AC
- Charger output current
- 70 A
Dimensions and weight
- Wheelbase
- 1,550 mm
- Service weight
- 860 kg
- Axle loading, laden front/rear
- 960/1,900 kg
- Axle loading, unladen front/rear
- 650/210 kg
- Tread width, front
- 514 mm
- Tread width, rear
- 385 mm
- Height, lowered
- 92 mm
- Overall length
- 2,058 mm
- Length to face of forks
- 908 mm
- Overall width
- 734 mm
- Fork dimensions
- 55 × 185 × 1,150 mm
- Ground clearance, laden, below mast
- 16 mm
- Ground clearance, centre of wheelbase
- 16 mm
- Aisle width for pallets 1000×1200 crossways
- 2,628 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,516 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 230 × 75mm
- Tyre size, rear
- 85 × 70mm
- Additional wheels (castor wheels)
- 130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x,2/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 570 mm
- Turnover output according to VDI 2198
- 108t/h
- Turnover efficiency according to VDI 2198
- 138.82t/kWh
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
