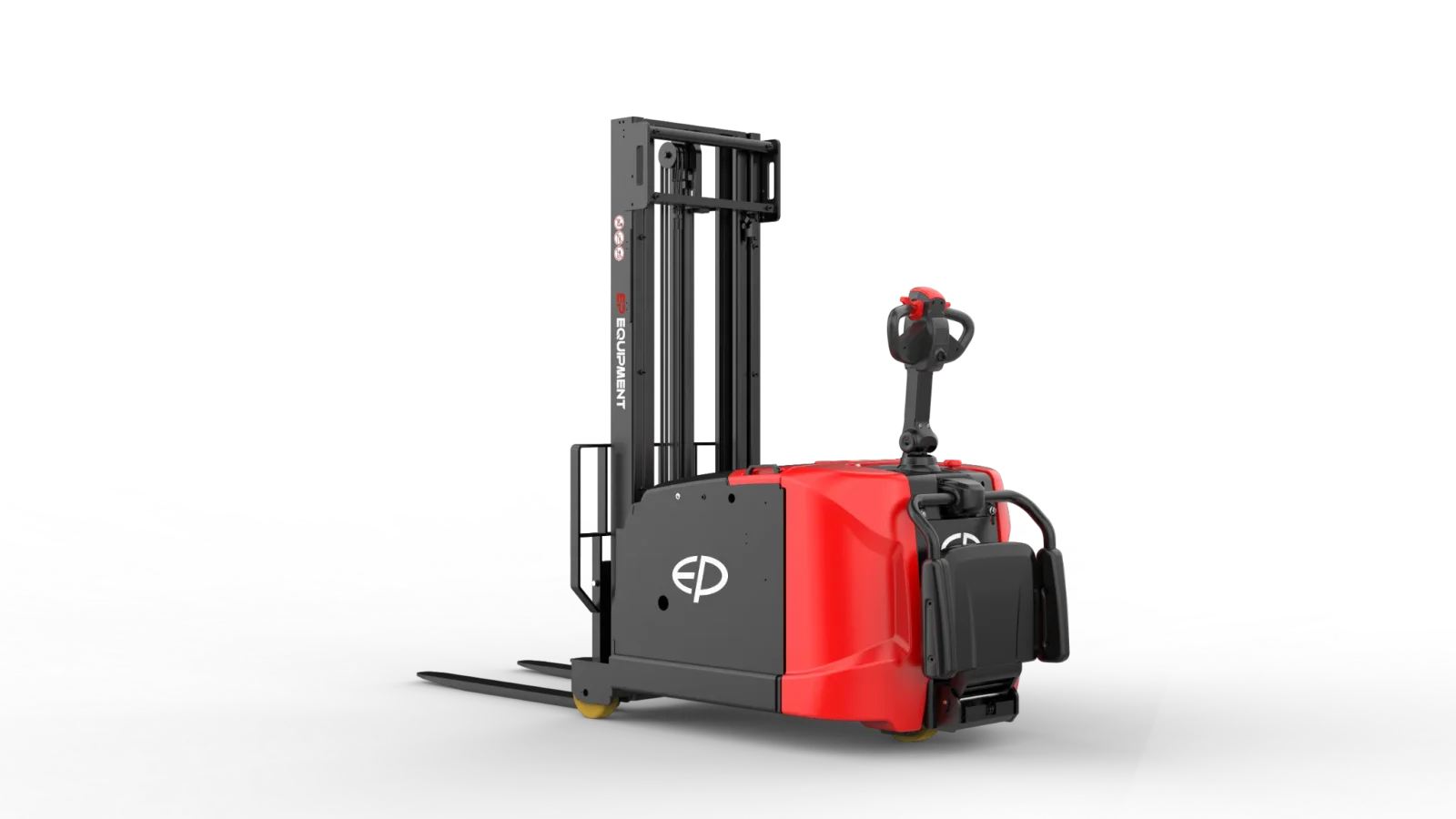

Electric counterbalance stacker
RSC152
- Load capacity
- 1,500 kg
- Lift height
- 3,000 mm
- Battery
- 24 V Li-ion
Overview
An electric counterbalance stacker with a rated capacity of 1,500 kg, a lift height of 3,000 mm and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,500 kg
- Lift height
- 3,000 mm
- Travel speed, laden/unladen
- 5.5/6 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,707 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 215 mm
- Tilt of mast/fork carriage forward/backward
- 1.5/7 °
- Height, mast lowered
- 2,018 mm
- Free lift
- 150 mm
- Height, mast extended
- 3,915 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 800 mm
- Lift speed, laden/unladen
- 0.13/0.2 m/s
- Lowering speed, laden/unladen
- 0.16/0.15 m/s
Performance
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 3.0 kW
- Battery voltage/nominal capacity
- 24/210V/Ah
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 210 Ah
- Battery type
- Lead Acid/Li-ion
- Battery weight
- 190 kg
- Energy consumption according to DIN EN 16796
- 1.417 ¹⁾kWh/h
- Type of drive unit
- AC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,125 mm
- Service weight
- 1,970 kg
- Axle loading, laden front/rear
- 415/3,055 kg
- Axle loading, unladen front/rear
- 1,185/785 kg
- Tread width, rear
- 787 mm
- Seat height relating to SIP/stand height
- 148 mm
- Height, lowered
- 60 mm
- Overall length
- 2,968 mm
- Length to face of forks
- 1,898 mm
- Overall width
- 900 mm
- Fork dimensions
- 40 × 100 × 1,070 mm
- Ground clearance, laden, below mast
- 80 mm
- Ground clearance, centre of wheelbase
- 116 mm
- Aisle width for pallets 1000×1200 crossways
- 3,270 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,380 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- 230 × 90mm
- Tyre size, rear
- 254 × 102mm
- Wheels, number front/rear (x=drive wheels)
- 1x,/2
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 200-760 mm
- Turnover output according to VDI 2198
- 55.5t/h
- Turnover efficiency according to VDI 2198
- 45.87t/kWh
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
