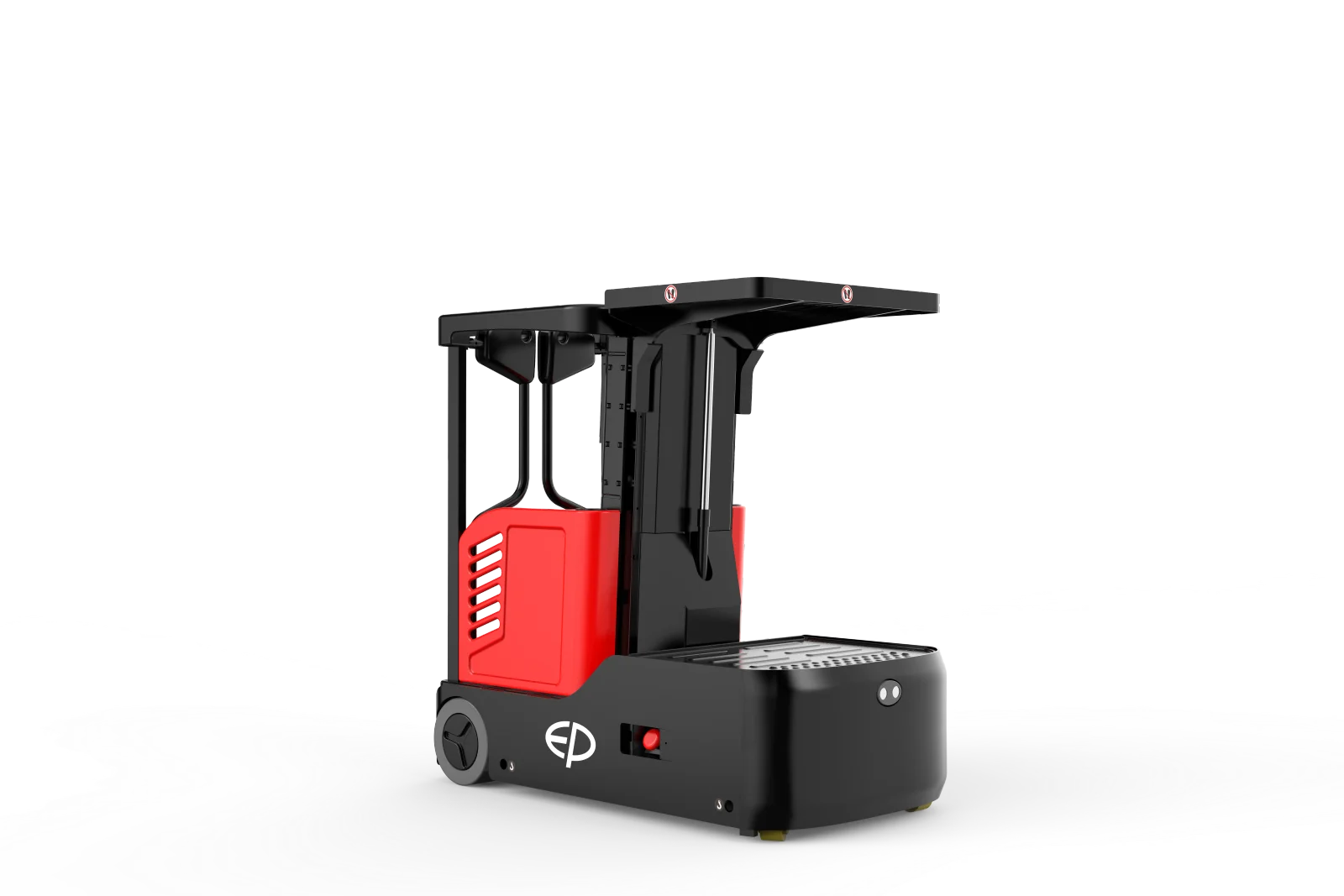

Compact vertical order picker
JX0
- Load capacity
- 136/90/110* kg
- Lift height
- 3,615 mm
- Battery
- 24 V Li-ion
Overview
A compact vertical order picker with a rated capacity of 136/90/110* kg, a lift height of 3,615 mm and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 136/90/110* kg
- Lift height
- 3,615 mm
- Travel speed, laden/unladen
- 6/6.5 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,260 mm
Show all specifications Hide specifications
Capacity and lifting
- Height, mast lowered
- 1,375 mm
- Free lift
- 485 mm
- Height, mast extended
- 4,090 mm
- Lift speed, laden/unladen
- 0.22/0.27 m/s
- Lowering speed, laden/unladen
- 0.31/0.25 m/s
Performance
- Max. gradeability, laden/unladen
- 5/8 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 0.65 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 120 / 135 Ah
- Battery type
- Lead Acid/Li-ion
- Battery weight
- 77 kg
- Energy consumption according to DIN EN 16796
- 0.65kWh/h
- Type of drive unit
- DC
- Charger output current
- 15 A
Dimensions and weight
- Wheelbase
- 1,095 mm
- Service weight
- 800 kg
- Axle loading, laden front/rear
- 673/467 kg
- Axle loading, unladen front/rear
- 380/420 kg
- Tread width, front
- 545 mm
- Tread width, rear
- 640 mm
- Height of overhead guard (cabin)
- 1,425 mm
- Seat height relating to SIP/stand height
- 285 mm
- Stand height, elevated
- 3000mm
- Overall length
- 1,440 mm
- Overall width
- 750 mm
- Ground clearance, centre of wheelbase
- 35 mm
Wheels and tyres
- Tyres
- Polyurethane/Solidrubber
- Tyre size, front
- φ210 × 70mm
- Tyre size, rear
- φ250 × 100mm
- Additional wheels (castor wheels)
- φ74 × 48mm
- Wheels, number front/rear (x=drive wheels)
- 1×, 2/2
General
- Drive
- Electric
- Operator type
- Order-picker
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 60 dB(A)
