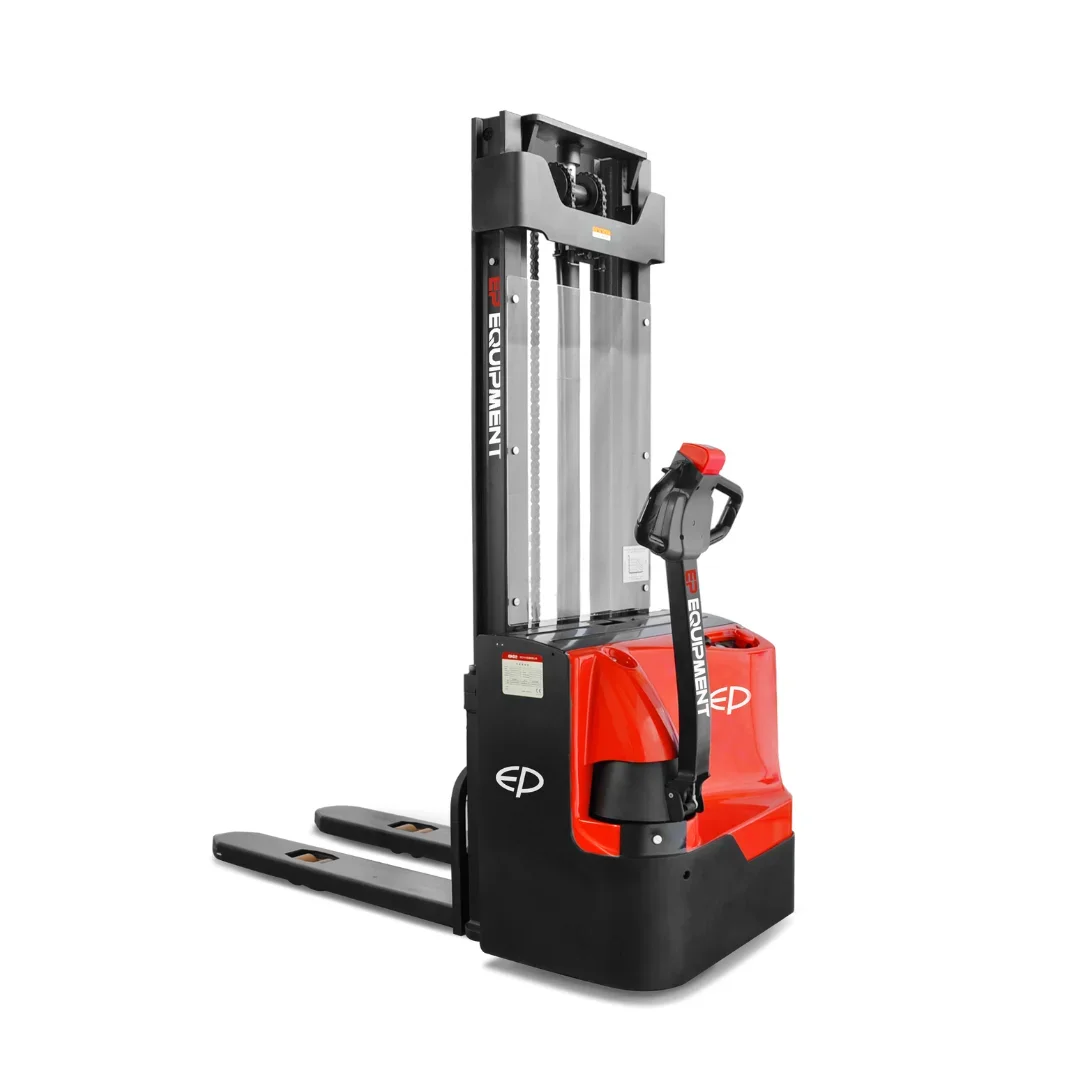

Electric stacker
ES12-12WA
- Load capacity
- 1,200 kg
- Lift heightUp to 4,800 mm with optional mast
- 2,912 mm
- Battery
- 24 V lead-acid
Overview
An electric stacker with a rated capacity of 1,200 kg, a lift height of 2,912 mm (up to 4,800 mm with optional mast) and a 24 V lead-acid battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,200 kg
- Lift height (standard mast)
- 2,912 mm
- Max. lift height
- 4,800 mm with optional mast
- Travel speed, laden/unladen
- 5.0/5.5 km/h
- Battery
- 24 V lead-acid
- Turning radius
- 1,463 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 778 mm
- Height, mast lowered
- 1,970 mm
- Free lift
- 100 mm
- Height, mast extended
- 3,420 mm
- Lift speed, laden/unladen
- 0.10/0.16 m/s
- Lowering speed, laden/unladen
- 0.19/0.18 m/s
Performance
- Height drawbar in driving position min./max.
- 715/1,200 mm
- Max. gradeability, laden/unladen
- 8/16 %
- Service brake
- Electromagnetic
- Parking brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 2.2 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 210 Ah
- Battery type
- Lead Acid
- Battery weight
- 190 kg
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,315 mm
- Service weight
- 955 kg
- Axle loading, laden front/rear
- 715/1,440 kg
- Axle loading, unladen front/rear
- 645/310 kg
- Tread width, front
- 538 mm
- Tread width, rear
- 380/515 mm
- Height, lowered
- 90 mm
- Width of loading surface
- 170
- Overall length
- 1,826 mm
- Length to face of forks
- 676 mm
- Overall width
- 800 mm
- Fork dimensions
- 60 × 170 × 1,150 mm
- Ground clearance, centre of wheelbase
- 28 mm
- Aisle width for pallets 1000×1200 crossways
- 2,333 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,303 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Ф230 × 75mm
- Tyre size, rear
- Ф85 × 70mm
- Additional wheels (castor wheels)
- Ф130 × 55 mm
- Wheels, number front/rear (x=drive wheels)
- 1x +1/4
General
- Drive
- Electric
- Operator type
- Pedestrian
- Distance between fork-arms
- 550/685 mm
- Steering design
- Mechanical
- Sound pressure level at the driver's seat
- 74 dB(A)
