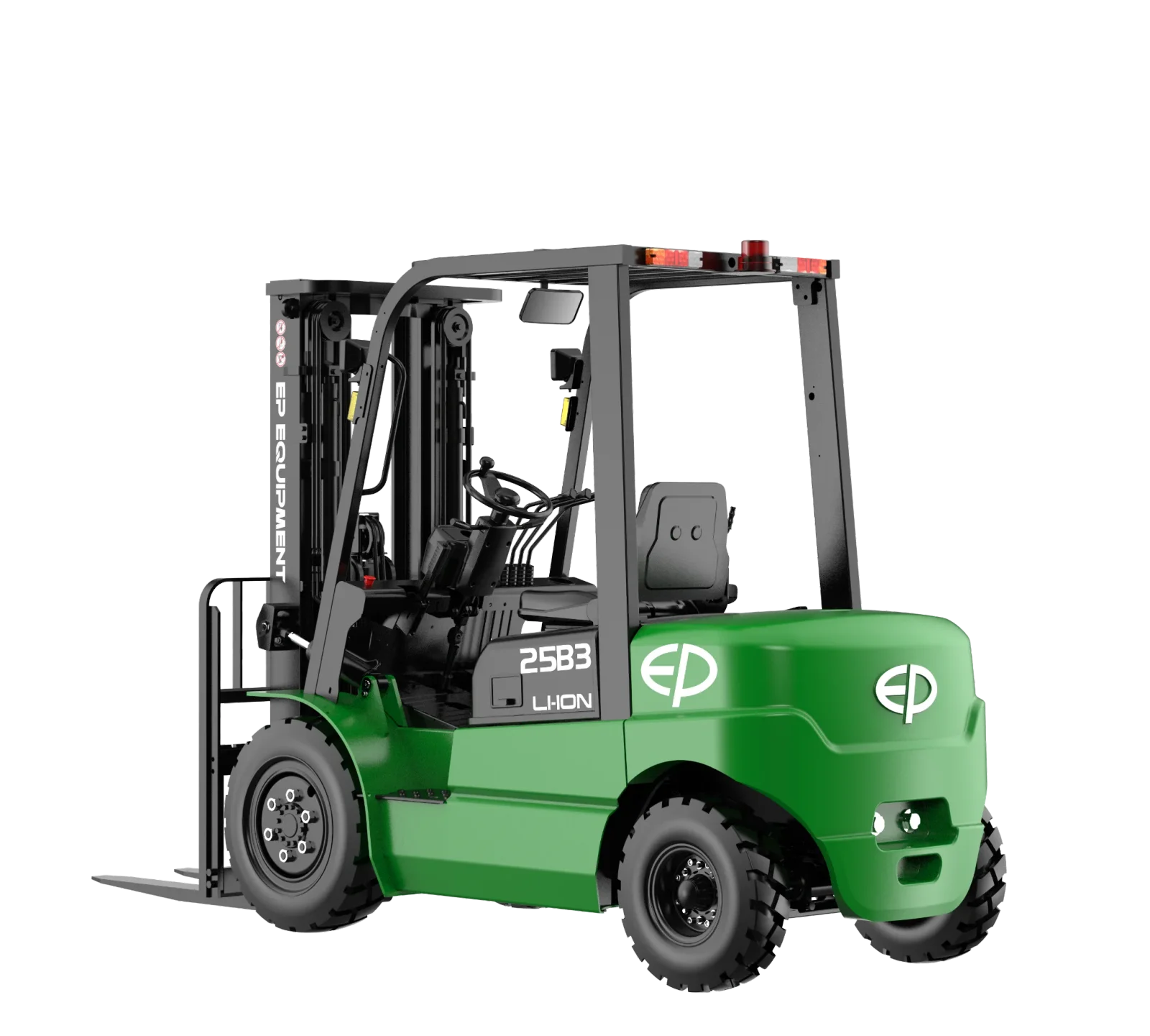

4-wheel Li-ion counterbalance forklift
EFL252B3
- Load capacity
- 2,500 kg
- Lift heightUp to 6,000 mm with optional mast
- 3,000 mm
- Battery
- 80 V Li-ion
Overview
A 4-wheel Li-ion counterbalance forklift with a rated capacity of 2,500 kg, a lift height of 3,000 mm (up to 6,000 mm with optional mast) and an 80 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,500 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 6,000 mm with optional mast
- Travel speed, laden/unladen
- 11/12 km/h
- Battery
- 80 V Li-ion
- Turning radius
- 2,350 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 481 mm
- Tilt of mast/fork carriage forward/backward
- 6/10 °
- Height, mast lowered
- 2,070 mm
- Free lift
- 120 mm
- Height, mast extended
- 4,090 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 1,040 mm
- Lift speed, laden/unladen
- 0.29/0.36 m/s
- Lowering speed, laden/unladen
- 0.45/0.35 m/s
Performance
- Max. gradeability, laden/unladen
- 15/20 %
- Service brake
- Mechanical/Hydraulic
- Parking brake
- Mechanical/Hydraulic
Battery and drive
- Drive motor rating S2 60 min
- 8 kW
- Lift motor rating at S3 15%
- 16 kW
- Battery voltage/nominal capacity
- 80V205AHV/Ah
- Battery type
- Li-ion
- Energy consumption according to DIN EN 16796
- 5.93 ¹⁾kWh/h
- Type of drive unit
- PMSM
Dimensions and weight
- Wheelbase
- 1,750 mm
- Service weight
- 3,820 kg
- Axle loading, laden front/rear
- 5,736/658 kg
- Axle loading, unladen front/rear
- 1,700/238 kg
- Tread width, front
- 980 mm
- Tread width, rear
- 980 mm
- Height of overhead guard (cabin)
- 2,160 mm
- Seat height relating to SIP/stand height
- 1,110 mm
- Coupling height
- 320 mm
- Overall length
- 3,715 mm
- Length to face of forks
- 2,665 mm
- Overall width
- 1,170/1,130 mm
- Fork dimensions
- 40 × 122 × 1,070 mm
- Ground clearance, laden, below mast
- 100 mm
- Ground clearance, centre of wheelbase
- 150 mm
- Aisle width for pallets 1000×1200 crossways
- 3,820 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,620 mm
Wheels and tyres
- Tyres
- Pneumatic
- Tyre size, front
- 7.00-12-12PRmm
- Tyre size, rear
- 6.50-10-10PRmm
- Wheels, number front/rear (x=drive wheels)
- 2x/2
General
- Drive
- Electric
- Operator type
- Seated
- Turnover output according to VDI 2198
- 145t/h
- Turnover efficiency according to VDI 2198
- 27.94t/kWh
- Operating pressure for attachments
- 170bar
- Oil volume for attachments
- 40ℓ/min
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- 74 dB(A)
