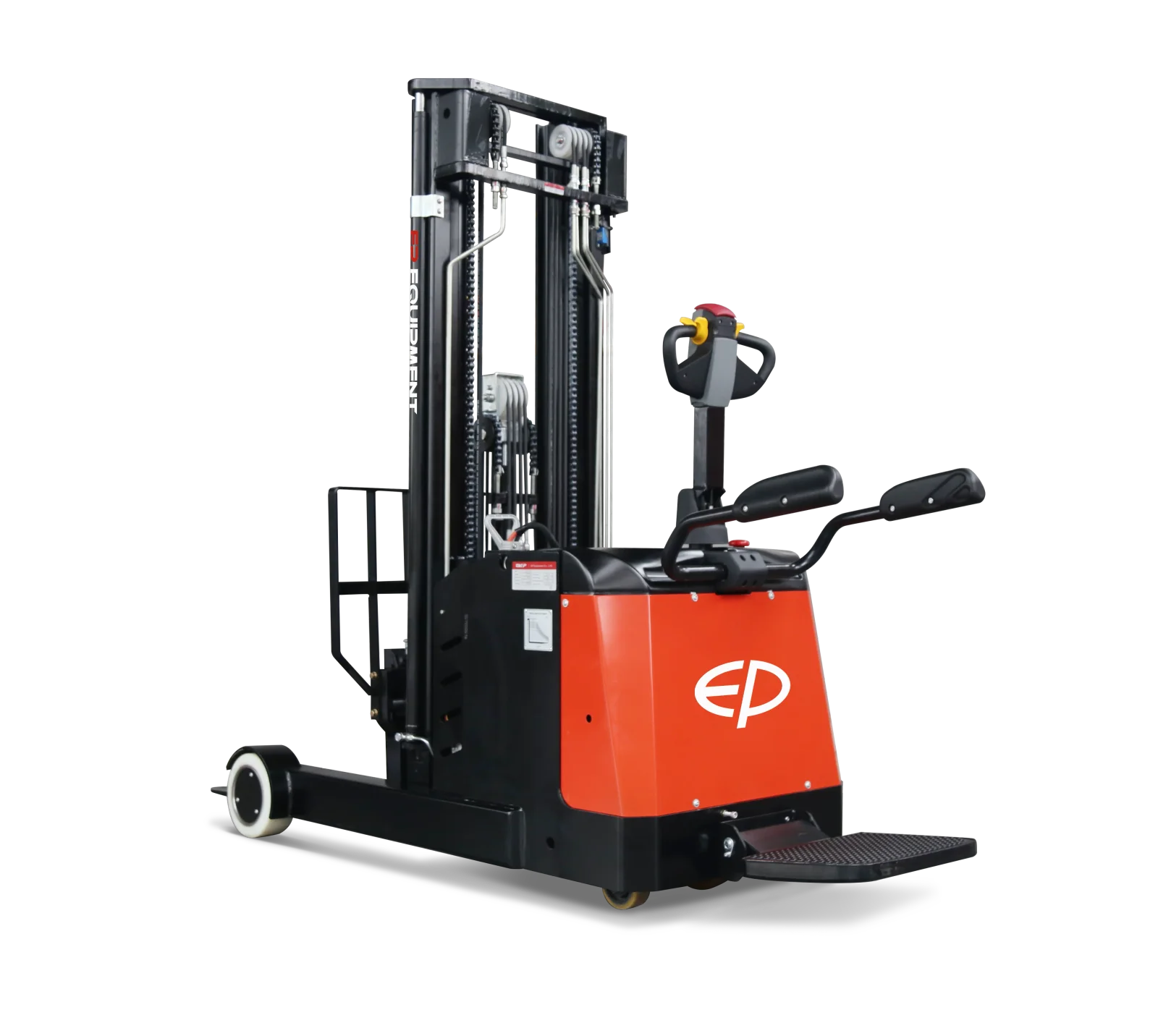

Electric reach truck
CQE12R
- Load capacity
- 1,200 kg
- Lift heightUp to 5,500 mm with optional mast
- 3,000 mm
- Battery
- 24 V Li-ion
Overview
An electric reach truck with a rated capacity of 1,200 kg, a lift height of 3,000 mm (up to 5,500 mm with optional mast) and a 24 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 1,200 kg
- Lift height (standard mast)
- 3,000 mm
- Max. lift height
- 5,500 mm with optional mast
- Travel speed, laden/unladen
- 5.5/6.0 km/h
- Battery
- 24 V Li-ion
- Turning radius
- 1,597 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 346 mm
- Tilt of mast/fork carriage forward/backward
- 2/4 °
- Height, mast lowered
- 2,065 mm
- Height, mast extended
- 4,000 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 956 mm
- Lift speed, laden/unladen
- 0.12/0.15 m/s
- Lowering speed, laden/unladen
- 0.18/0.12 m/s
Performance
- Max. gradeability, laden/unladen
- 6/10 %
- Service brake
- Electromagnetic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 1.6 kW
- Lift motor rating at S3 15%
- 1.6 kW
- Battery voltage
- 24 V
- Battery nominal capacity K5
- 210 Ah
- Battery type
- Lead Acid/Li-ion
- Battery weight
- 190 kg
- Type of drive unit
- AC
- Charger output current
- 30 A
Dimensions and weight
- Wheelbase
- 1,310 mm
- Service weight
- 1,745 kg
- Axle loading, laden front/rear
- 454/2,510 kg
- Axle loading, unladen front/rear
- 1,052/782 kg
- Tread width, front
- 634 mm
- Tread width, rear
- 900 mm
- Seat height relating to SIP/stand height
- 150 mm
- Height of wheel arms
- 235mm
- Stand height, elevated
- 4000mm
- Height, lowered
- 2,065 mm
- Overall length
- 2,312 mm
- Length to face of forks
- 1,242 mm
- Overall width
- 850/988 mm
- Fork dimensions
- 40/100/1,070 mm
- Ground clearance, laden, below mast
- 75 mm
- Ground clearance, centre of wheelbase
- 70 mm
- Aisle width for pallets 1000×1200 crossways
- 2,684 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,739 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Φ230 × 75mm
- Tyre size, rear
- Φ210 × 85mm
- Additional wheels (castor wheels)
- Φ130 × 55mm
- Wheels, number front/rear (x=drive wheels)
- 1x+2/2
- Distance between wheel arms/loading surfaces
- 698
General
- Drive
- Electric
- Operator type
- Pedestrian
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 74 dB(A)
