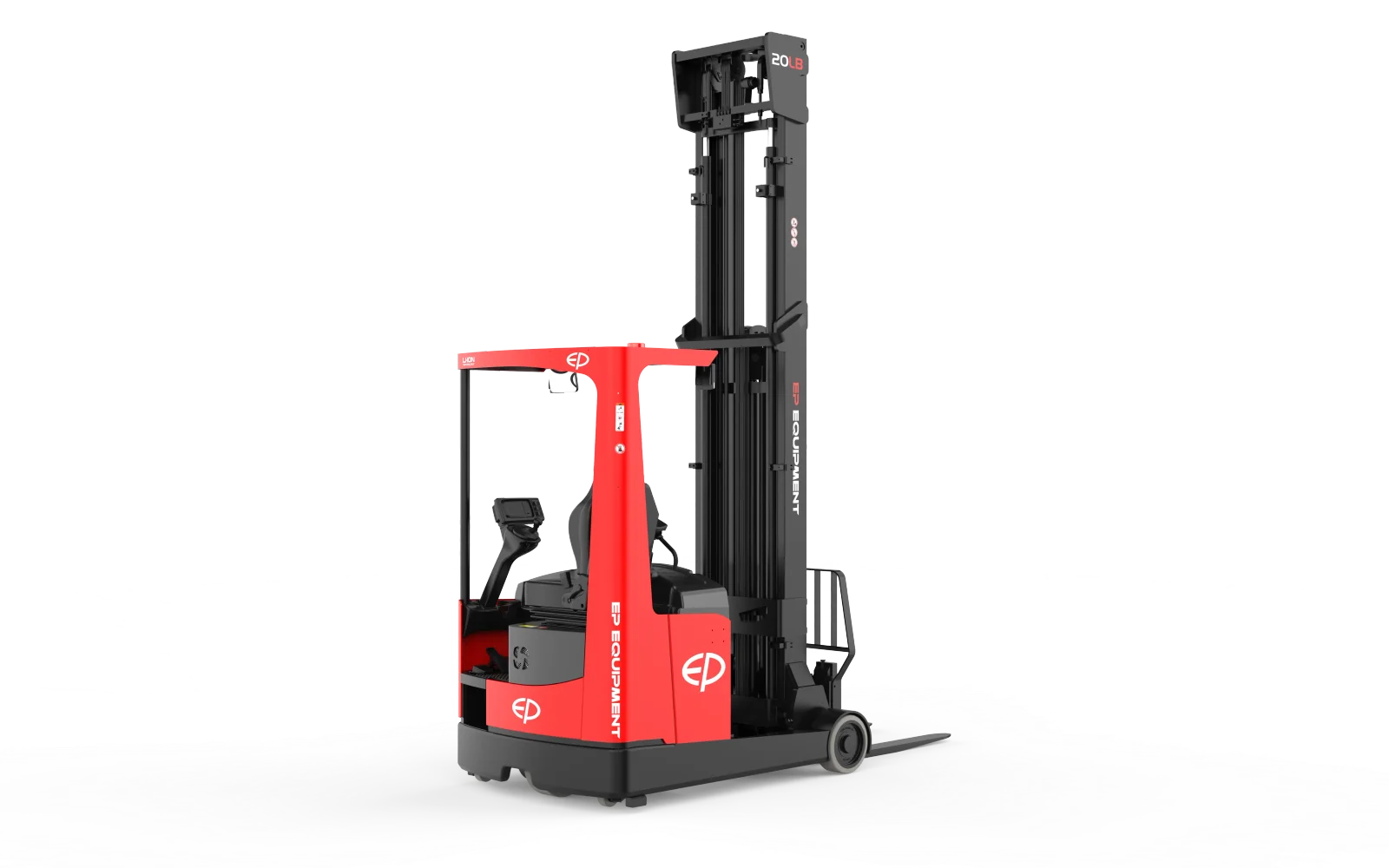

Li-ion reach truck
CQD20LB
- Load capacity
- 2,000 kg
- Lift heightUp to 12,000 mm with optional mast
- 9,500 mm
- Battery
- 48 V Li-ion
Overview
A Li-ion reach truck with a rated capacity of 2,000 kg, a lift height of 9,500 mm (up to 12,000 mm with optional mast) and a 48 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height (standard mast)
- 9,500 mm
- Max. lift height
- 12,000 mm with optional mast
- Travel speed, laden/unladen
- 9/9.5 km/h
- Battery
- 48 V Li-ion
- Turning radius
- 1,770 mm
Show all specifications Hide specifications
Capacity and lifting
- Load centre distance
- 600 mm
- Load distance, centre of drive axle to fork
- 399 mm
- Tilt of mast/fork carriage forward/backward
- 2/4 °
- Free lift
- 2,870 mm
- Height, mast extended
- 10,560 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 990 mm
- Lift speed, laden/unladen
- 0.45/0.55 m/s
- Lowering speed, laden/unladen
- 0.5/0.45 m/s
Performance
- Max. gradeability, laden/unladen
- 10/15 %
- Service brake
- Electromagnetic
Battery and drive
- Drive motor rating S2 60 min
- 7 kW
- Lift motor rating at S3 15%
- 20 kW
- Battery voltage
- 48 V
- Battery nominal capacity K5
- 405 Ah
- Battery type
- Li-ion
- Battery weight
- 490 kg
- Type of drive unit
- AC
- Charger output current
- 200 A
Dimensions and weight
- Wheelbase
- 1,515 mm
- Service weight
- 3,940 kg
- Axle loading, laden front/rear
- 635/5,340 kg
- Axle loading, unladen front/rear
- 2,465/1,490 kg
- Tread width, rear
- 1,148 mm
- Height of overhead guard (cabin)
- 2,213 mm
- Seat height relating to SIP/stand height
- 1,076 mm
- Height of wheel arms
- 333mm
- Overall length
- 2,443 mm
- Length to face of forks
- 1,373 mm
- Overall width
- 1,270 mm
- Fork dimensions
- 40/120/1,070 mm
- Ground clearance, laden, below mast
- 70 mm
- Ground clearance, centre of wheelbase
- 75 mm
- Aisle width for pallets 1000×1200 crossways
- 2,835 mm
- Aisle width for pallets 800 × 1200 lengthways
- 2,885 mm
Wheels and tyres
- Tyres
- Polyurethane
- Tyre size, front
- Φ343 × 140mm
- Tyre size, rear
- Φ310 × 118mm
- Additional wheels (castor wheels)
- Φ102 × 51mm
- Wheels, number front/rear (x=drive wheels)
- 1x/2
- Distance between wheel arms/loading surfaces
- 915
General
- Drive
- Electric
- Operator type
- Seated
- Distance between fork-arms
- 240/770 mm
- Steering design
- Electronic
- Sound pressure level at the driver's seat
- 70 dB(A)
