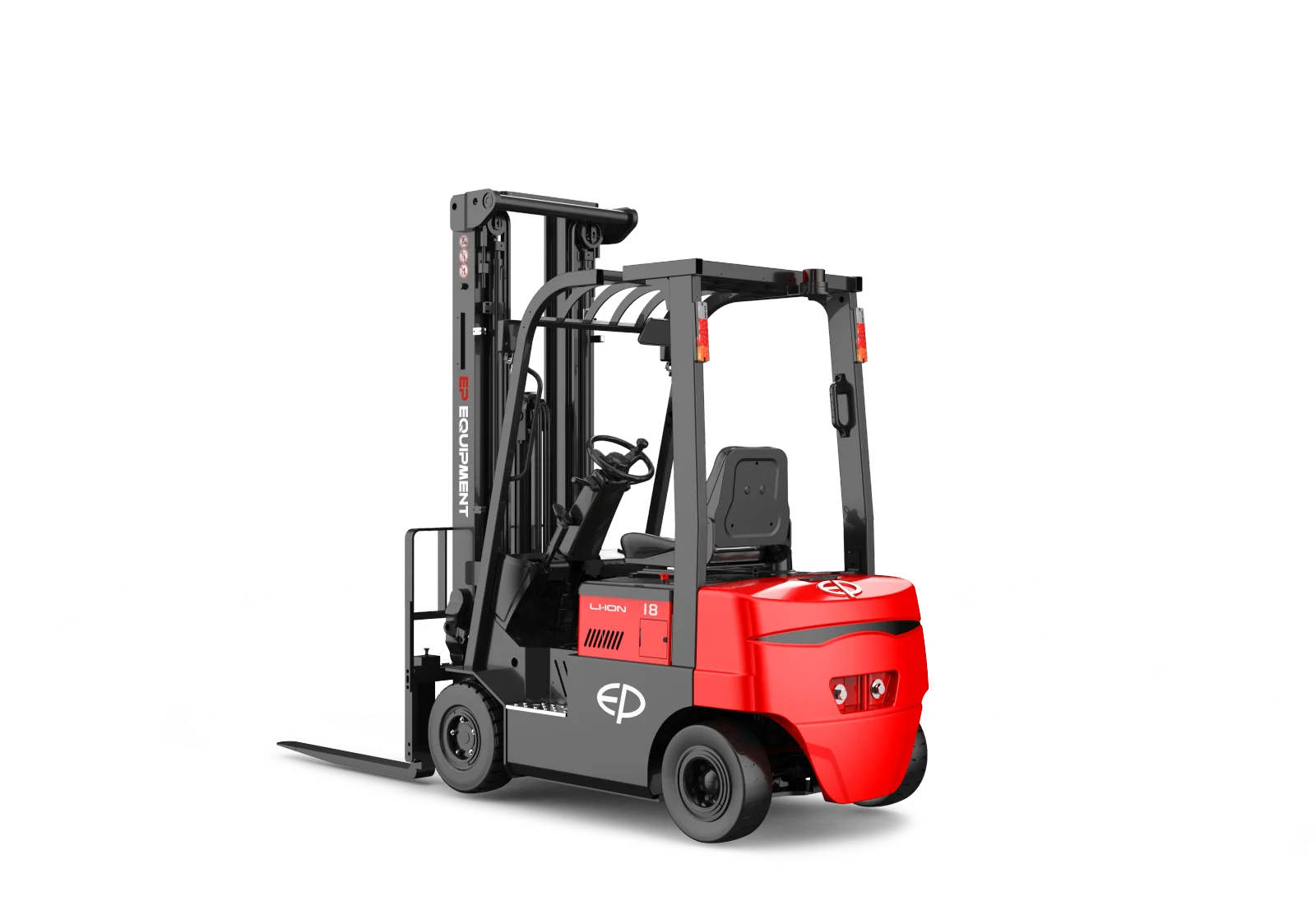

Li-ion 4-wheel dual drive counterbalance forklift
CPD20FVL
- Load capacity
- 2,000 kg
- Lift height
- 6,000 mm
- Battery
- 80 V Li-ion
Overview
A Li-ion 4-wheel dual drive counterbalance forklift with a rated capacity of 2,000 kg, a lift height of 6,000 mm and an 80 V Li-ion battery.
Specifications
Specifications per EP Equipment. Contact us to confirm availability and configuration for Aruba.
- Load capacity
- 2,000 kg
- Lift height
- 6,000 mm
- Travel speed, laden/unladen
- 13/14 km/h
- Battery
- 80 V Li-ion
- Turning radius
- 1,730 mm
Show all specifications Hide specifications
Capacity and lifting
- Load capacity，load with mast lift
- 180kg
- Load capacity, load with support arm lift
- 25kg
- Load centre distance
- 500 mm
- Load distance, centre of drive axle to fork
- 420 mm
- Tilt of mast/fork carriage forward/backward
- 5/5 °
- Height, mast lowered
- 2,075 mm
- Free lift
- 100 mm
- Height, mast extended
- 4,055 mm
- Fork carriage ISO 2328, class/type A, B
- 2A
- Fork carriage width
- 1,040 mm
- Lift speed, laden/unladen
- 0.33/0.45 m/s
- Lowering speed, laden/unladen
- 0.4/0.44 m/s
Performance
- Max. gradeability, laden/unladen
- 10/15 %
- Service brake
- Hydraulic
- Parking brake
- Mechanical
Battery and drive
- Drive motor rating S2 60 min
- 5.0 × 2 kW
- Lift motor rating at S3 15%
- 11 kW
- Battery voltage
- 80 V
- Battery nominal capacity K5
- 205 Ah
- Battery type
- Li-ion
- Battery weight
- 185 kg
- Type of drive unit
- AC
Dimensions and weight
- Wheelbase
- 1,330 mm
- Service weight
- 3,270 kg
- Axle loading, laden front/rear
- 4,646/624 kg
- Axle loading, unladen front/rear
- 1,260/2,010 kg
- Tread width, front
- 969 mm
- Tread width, rear
- 890 mm
- Height of overhead guard (cabin)
- 2,078 mm
- Seat height relating to SIP/stand height
- 1,050 mm
- Coupling height
- 600 mm
- Overall length
- 3,070 mm
- Length to face of forks
- 2,150 mm
- Overall width
- 1,170 mm
- Fork dimensions
- 40 × 122 × 1,070 mm
- Ground clearance, laden, below mast
- 89 mm
- Ground clearance, centre of wheelbase
- 92 mm
- Aisle width for pallets 1000×1200 crossways
- 3,472 mm
- Aisle width for pallets 800 × 1200 lengthways
- 3,598 mm
Wheels and tyres
- Tyres
- Solid rubber
- Tyre size, front
- 200/50-10mm
- Tyre size, rear
- 16 × 6-8mm
- Wheels, number front/rear (x=drive wheels)
- 2X/2
General
- Drive
- Electric
- Operator type
- Seated
- Steering design
- Hydraulic
- Sound pressure level at the driver's seat
- 70 dB(A)
